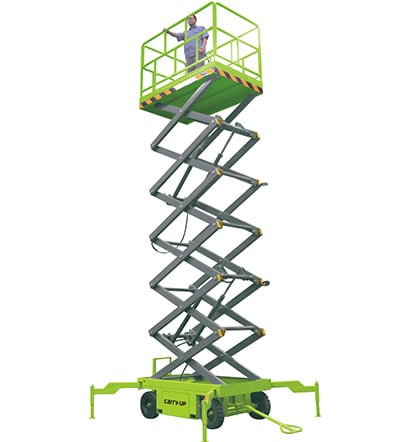

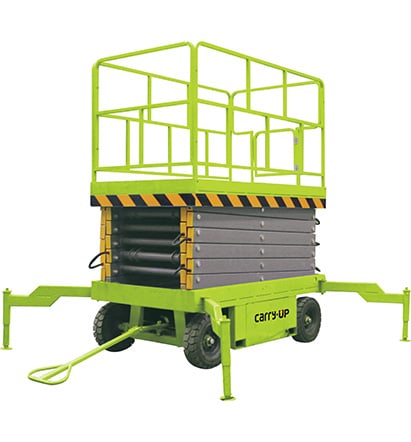

SL05 Mobile Scissors Lift Platform(Big)
Mobile Scissors Lift Platform(BIG)
SL0.5-6, SL0.5-7, SL0.5-8, SL0.5-9, SL0.5-10, SL0.5-11
Max.Load Capacity:500kgs
Working Platform Height: 6000mm-11000mm
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- Description
| Mobile Scissors Lift Platform(BIG) | |||||||||
| Specification | 1 | Model | SL0.5-6 | SL0.5-7 | SL0.5-8 | SL0.5-9 | SL0.5-10 | SL0.5-11 | |
| 2 | Platform Height | mm | 6000 | 7000 | 8000 | 9000 | 10000 | 11000 | |
| 3 | Platform Size | mm | 2100×800 | 2100×800 | 2100×900 | 2100×900 | 2100×1200 | 2100×1200 | |
| 4 | Dimension | mm | 2200×1100×1300 | 2200×1100×1350 | 2200×1200×1450 | 2200×1200×1500 | 2200×1400×1550 | 2200×1400×1700 | |
| 5 | Max.Load | kg | 500 | 500 | 500 | 500 | 500 | 500 | |
| 6 | Power | kw/V | 1.5/220 | 1.5/220 | 2.2/220 | 2.2/220 | 2.2/380 | 2.2/380 | |
| 7 | Weight | kg | 900 | 950 | 1100 | 1260 | 1500 | 1700 | |
Mobile Scissors Lift Platform(BIG)
SL0.5-6, SL0.5-7, SL0.5-8, SL0.5-9, SL0.5-10, SL0.5-11
Max.Load Capacity:500kgs
Working Platform Height:6000mm-11000mm
