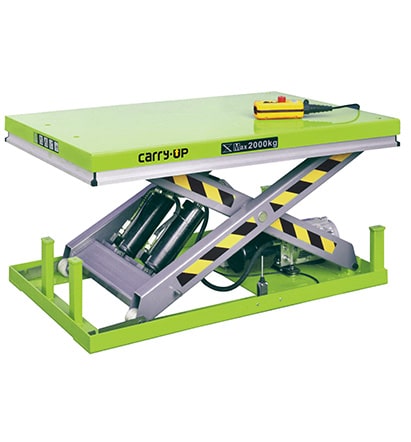

DGS10/DGS20/DGS40 Scissor Lift Table
Scissor Lift Table
DGS10,DGS20,DGS40
Load Capacity: 1ton,2tons,4tons
Max. Platform Height:6000mm-14000mm
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- Feature and Details
| Scissor Lift Table | |||||||||
| Capacity | Platform Height (min/max) | Platform Size | Pedestal size | Rise Time | Voltage | Net Weight | |||
| Model | Kg | mm | mm | mm | S | V/HZ | kg | ||
| DGS1001 | 1000 | 230/1300 | 1300×850 | 1240×640 | 30-35 | 380v/50Hz | 160 | ||
| DGS1002 | 1000 | 230/1300 | 1600×1000 | 1240×640 | 30-35 | 380v/50Hz | 186 | ||
| DGS1003 | 1000 | 240/1300 | 1700×850 | 1580×640 | 30-35 | 380v/50Hz | 200 | ||
| DGS1004 | 1000 | 240/1300 | 1700×1000 | 1580×640 | 30-35 | 380v/50Hz | 210 | ||
| DGS1005 | 1000 | 240/1300 | 2000×850 | 1580×640 | 30-35 | 380v/50Hz | 212 | ||
| DGS1006 | 1000 | 240/1300 | 2000×1000 | 1580×640 | 30-35 | 380v/50Hz | 223 | ||
| DGS1007 | 1000 | 240/1300 | 1700×1500 | 1580×1320 | 30-40 | 380v/50Hz | 365 | ||
| DGS1008 | 1000 | 240/1300 | 2000×1700 | 1580×1320 | 30-40 | 380v/50Hz | 430 | ||
| DGS2001 | 2000 | 230/1300 | 1300×850 | 1220×785 | 20-25 | 380v/50Hz | 235 | ||
| DGS2002 | 2000 | 230/1300 | 1600×1000 | 1220×785 | 30-35 | 380v/50Hz | 268 | ||
| DGS2003 | 2000 | 250/1300 | 1700×850 | 1600×785 | 30-35 | 380v/50Hz | 289 | ||
| DGS2004 | 2000 | 250*1300 | 1700×1000 | 1600×785 | 30-35 | 380v/50Hz | 300 | ||
| DGS2005 | 2000 | 250/1300 | 2000×850 | 1600×785 | 30-35 | 380v/50Hz | 300 | ||
| DGS2006 | 2000 | 250/1300 | 2000×1000 | 1600×785 | 30-35 | 380v/50Hz | 315 | ||
| DGS2007 | 2000 | 250/1400 | 1700×1500 | 1600×1435 | 30-35 | 380v/50Hz | 415 | ||
| DGS2008 | 2000 | 250/1400 | 2000×1800 | 1600×1435 | 30-35 | 380v/50Hz | 500 | ||
| DGS4001 | 4000 | 240/1050 | 1700×1200 | 1600×900 | 30-40 | 380v/50Hz | 375 | ||
| DGS4002 | 4000 | 240/1050 | 2000×1200 | 1600×900 | 30-40 | 380v/50Hz | 405 | ||
| DGS4003 | 4000 | 300/1400 | 2000×1000 | 1980×900 | 30-40 | 380v/50Hz | 470 | ||
| DGS4004 | 4000 | 300/1400 | 2000×1200 | 1980×900 | 35-40 | 380v/50Hz | 490 | ||
| DGS4005 | 4000 | 300/1400 | 2200×1000 | 1980×900 | 35-40 | 380v/50Hz | 480 | ||
| DGS4006 | 4000 | 300/1400 | 2200×1200 | 1980×900 | 35-40 | 380v/50Hz | 505 | ||
| DGS4007 | 4000 | 350/1300 | 1700×1500 | 1620×1400 | 35-45 | 380v/50Hz | 570 | ||
| DGS4008 | 4000 | 350/1300 | 2200×1800 | 1620×1400 | 35-45 | 380v/50Hz | 655 | ||
