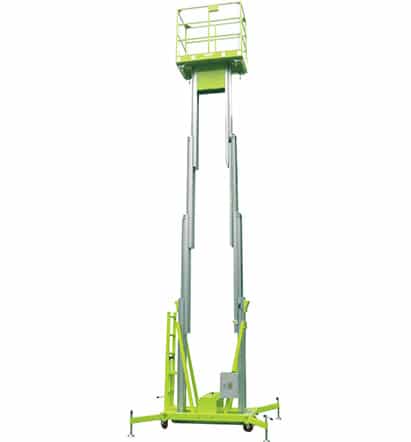

DL6/DL8/DL10/DL12/DL14 Dual-supporting Aluminum Alloy Elevator
Dual-supporting Aluminum Alloy Elevator
DL6,DL8,DL10,DL12,DL14
Load Capacity: 200kgs
Max. Platform Height:6000mm-14000mm
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- Description
| Dual -supporting Aluminum Alloy Elevator | |||||||||
| Specification | 1 | Model | DL6 | DL8 | DL10 | DL12 | DL14 | ||
| 2 | Platform Height （Max) | mm | 6000 | 8000 | 10000 | 12000 | 14000 | ||
| 3 | Working Height(Max) | mm | 7700 | 9700 | 11700 | 13700 | 15700 | ||
| 4 | Overall Length | mm | 1380 | 1380 | 1580 | 1620 | 1730 | ||
| 5 | Overall Width | mm | 850 | 850 | 950 | 950 | 950 | ||
| 6 | Overall Height | mm | 1980 | 1980 | 1980 | 2250 | 2250 | ||
| 7 | Dimension | mm | 1180×620 | 1180×620 | 1380×620 | 1180×620 | 1500×620 | ||
| 8 | Max.Load | kg | 200 | 200 | 200 | 200 | 200 | ||
| 9 | Voltage | V/HZ | AC220/50 DC24/0.8KW | ||||||
| 10 | Power | kw | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | ||
| 11 | Weight | kg | 380 | 480 | 610 | 650 | 710 | ||
Dual-supporting Aluminum Alloy Elevator
DL6,DL8,DL10,DL12,DL14
Load Capacity: 200kgs
Max. Platform Height:6000mm-14000mm
