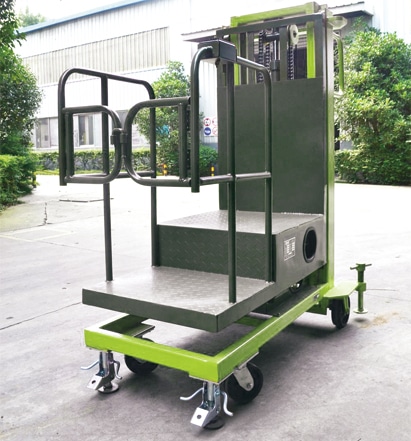

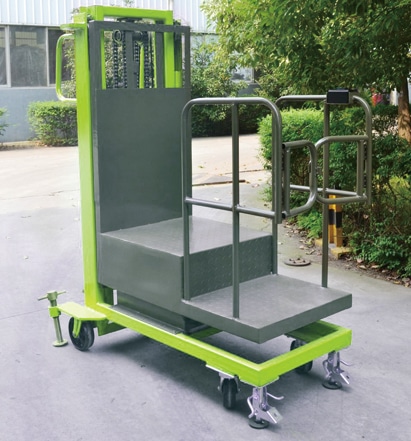

OPH03 Semi-Electric High-Level Order Picker

Semi-Electric High-Level Order Picker

OPH03

Load Capacity: 300kgs

Max.lift Height:3000mm

Semi-Electric High-Level Order Picker OPH03
General	1	Model			OPH03
	2	Power Type			Semi-Electric
	3	Operation Type			Stand on
	4	Rated Capacity		kg	300
	5	Load Centre		c(mm)	500
	6	Wheelbase		y(mm)	1025
Characteristic&Dimension	7	Lift Height		h1(mm)	3000
	8	Tyre	Front /rear Type		PU/PU
	9		Front Wheel Size	mm	φ150×50
	10		Driving Wheel Size	mm	φ180×50
	11		Balance Wheel Size	mm	/
	12		Front/rear Number (X=drive)		2/2
	13	Overall Dimension	Mast Lowered Height	h3(mm)	1990
	14		Mast Extended Height w/brackrest	h4(mm)	3220
	15		Min. Platform Height	h8(mm)	540
	16		Overall Length	l1(mm)	1520
	17		Overall Width	b1/b2(mm)	600/890
	18		Tread	b3/b4(mm)	485/686
	19		Platform Size	l/e(mm)	600×600
	20	Turning Radius		Wa(mm)	1380
Performance	21	Speed	Travel (laden/unladen)	km/h	/
	22		Lifting (laden/unladen)	mm/s	80/85
	23		Lowering (laden/unladen)	mm/s	/
	24	Steering Type			Mechanical
	25	Service Brake			Mechanical
	26	Parking Brake Type			Foot brake
	27	Max.Gradeability(Laden/unladen)		%	/
	28	Service Weight(include battery)		kg	405
Power&Transmission	29	Motor	Drive Motor Type		/
	30		Drive Motor (S2 60)	kw	/
	31		Lift Motor Type		DC
	32		Lift Motor (S3 15%)	kw	1.5
	33	Battery	Voltage/Capacity	V/Ah	12/115
	34	Battery	Weight	kg	33
