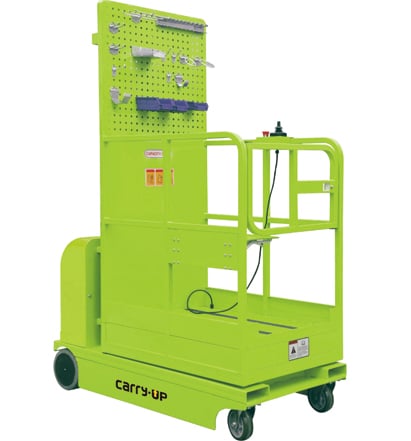

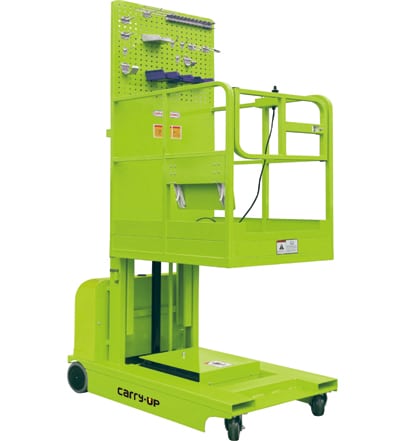

OPL03 Full Electric Aerial Platform Vehicle
Full Electric Aerial Platform Vehicle
OPL03
LoadCapacity: 300kgs
Max.lift Height:3000mm-4500mm
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- Details
| Full Electric Aerial Platform Vehicle | |||||||||
| Specification | 1 | Model | OPL03 | ||||||
| 2 | Platform Max Load | kg | 300 | ||||||
| 3 | Platform Height （Max) | mm | 2700 | 3000 | 3500 | 4000 | 4500 | ||
| 4 | Machine Height（Max) | mm | 3989 | 4439 | 5189 | 5400 | 6000 | ||
| 5 | Ground Clearance (Min) | mm | 40 | 40 | 40 | 40 | 40 | ||
| 6 | Platform Size | mm | 880×690 | 880×690 | 880×690 | 880×690 | 880×690 | ||
| 7 | Overall Length | mm | 1520 | 1520 | 1520 | 1520 | 1520 | ||
| 8 | Overall Width | mm | 760 | 760 | 760 | 760 | 760 | ||
| 9 | Overall Height | mm | 1710 | 1860 | 2110 | 1810 | 1990 | ||
| 10 | Travel Speed(Stowed) | km/h | 4 | 4 | 4 | 4 | 4 | ||
| 11 | Travel Speed(Raised) | km/h | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||
| 12 | Turning Radius (Min) | mm | 1500 | 1500 | 1500 | 1500 | 1500 | ||
| 13 | Gradeability | % | 15~20 | 15~20 | 15~20 | 15~20 | 15~20 | ||
| 14 | Driving Wheels | mm | Φ230×80 | Φ230×80 | Φ230×80 | Φ230×80 | Φ230×80 | ||
| 15 | Caster Size | in | 6 | 6 | 6 | 6 | 6 | ||
| 16 | Drive Motors | V/kw | 2×24/0.4 | 2×24/0.4 | 2×24/0.4 | 2×24/0.4 | 2×24/0.4 | ||
| 17 | Lifting Motor | V/kw | 24/1.6 | 24/1.6 | 24/1.6 | 24/1.6 | 24/1.6 | ||
| 18 | Charger | V/A | 24/20 | 24/20 | 24/20 | 24/20 | 24/20 | ||
| 19 | Maintenance free battery | V/Ah | 2×12/120 | 2×12/120 | 2×12/120 | 2×12/120 | 2×12/120 | ||
| 20 | Net Weight | kg | 560 | 580 | 600 | 662 | 682 | ||
