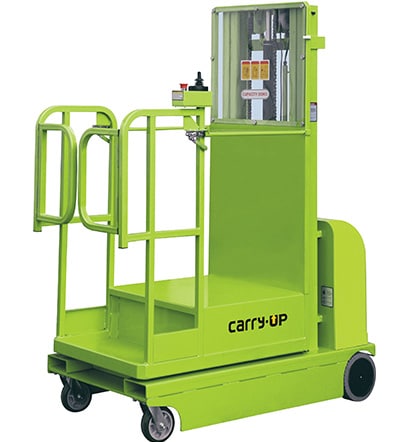

AT03 Full Electric Aerial Order Picker

Full Electric Aerial Order Picker

AT03

LoadCapacity: 300kgs

Max.Platform Height:2700mm-4500mm

Full Electric Aerial Order Picker
Specification	1	Model		AT03-2.7	AT03-3	AT03-3.5	AT03-4.0	AT03-4.5
	2	Platform Height （Max)	mm	2700	3000	3500	4000	4500
	3	Machine Height（Max)	mm	3989	4439	5189	5400	6000
	4	Ground Clearance (Min)	mm	40	40	40	40	40
	5	Platform Size	mm	650×690	650×690	650×690	650×690	650×690
	6	Overall Length	mm	1520	1520	1520	1520	1520
	7	Overall Width	mm	760	760	760	760	760
	8	Overall Height	mm	1710	1860	2110	1810	1990
	9	Max.Load	kg	300	300	300	300	300
	10	Travel Speed(Stowed)	km/h	4	4	4	4	4
	11	Travel Speed(Raised)	km/h	1.5	1.5	1.5	1.5	1.5
	12	Turning Radius (Min)	mm	1500	1500	1500	1500	1500
	13	Gradeability	%	15~20	15~20	15~20	15~20	15~20
	14	Driving Wheels	mm	Φ230×80	Φ230×80	Φ230×80	Φ230×80	Φ230×80
	15	Caster Size	in	6	6	6	6	6
	16	Drive Motors	V/kw	2×24/0.4	2×24/0.4	2×24/0.4	2×24/0.4	2×24/0.4
	17	Lifting Motor	V/kw	24/1.6	24/1.6	24/1.6	24/1.6	24/1.6
	18	Charger	V/A	24/20	24/20	24/20	24/20	24/20
	19	Maintenance free battery	V/Ah	2×12/120	2×12/120	2×12/120	2×12/120	2×12/120
	20	Net Weight	kg	560	580	600	662	682
