TW10/TW15 Three Way Electric Reach Truck

Three Way Electric Reach Truck

TW10/TW15

3-Way Electric Reach Truck TW10，TW15
General	1	Model				TW1030	TW1045	TW1530	TW1545
	2	Power Type				Electric
	3	Operation Type				Stand on
	4	Rated Capacity			kg	1000	1000	1500	1500
	5	Load Centre			mm	500		600
	6	Wheelbase			mm	1605		1700
Characteristic&Dimension	7	Lift Height			mm	3000	4500	3000	4500
	9	Front Overhang (Wheel center to fork face)			mm	655	655	655	655
	10	Tyre		Front /rear type	mm	PU
	11			Front wheel size	mm	φ140*100		φ140*127
	12			Driving wheel size	mm	φ380*165
	13			Balance wheel size	mm	φ204*76
	14			front/rear number (X=drive)	mm	4/1X+2
	17	Overall Dimension		Mast Lowered Height	mm	2570	2750	2565	2823
	18			Free lift height	mm	0	1780	0	1745
	20			Mast Extended Height (with backrest)	mm	4060	5450	4040	5555
	20			Overhead Guard Height	mm	2325	2325	2325	2325
	20			Height of pedal	mm	370	370	370	370
	20			Overall Length	mm	2892	2892	3000	3000
	20			Overall width	mm	1450	1450	1550	1550
	20			Fork Dimensions	l/e/s(mm)	1070/100/35		1070/125/50
	20			Width overall forks	mm	230~760		400~780
	21			Ground Clearance	mm	40
	22	Turning Radius			mm	1880		1980
	23	Aisle Width for pallet 1000*1200			mm	1480		1600
Performance	24	Speed		Travel (laden/unladen)	km/h	8/9		7.5/8
Performance	25	Speed		Lift (laden/unladen)	mm/s	180/315		180/315
	30	Steering type			/	hydraulic		EPS
	30	Service weight(include battery)			kg	4760	5270	4650	5640
Power&Transmission	31	Motor	Drive motor		kw	5.5AC
	32	Motor	Lift motor		kw	7.5DC		8.6AC
	33	Battery	Voltage/Capacity		V/Ah	48/400	48/400	48/450	48/450
	34	Controller	Manufacturer			CURTIS	CURTIS	CURTIS	CURTIS
	36	Battery change type			Mpa	Side pull	Side pull	Side pull	Side pull

Three Way Electric Reach Truck

Loaded Capacity: 1Tons，1.5Tons

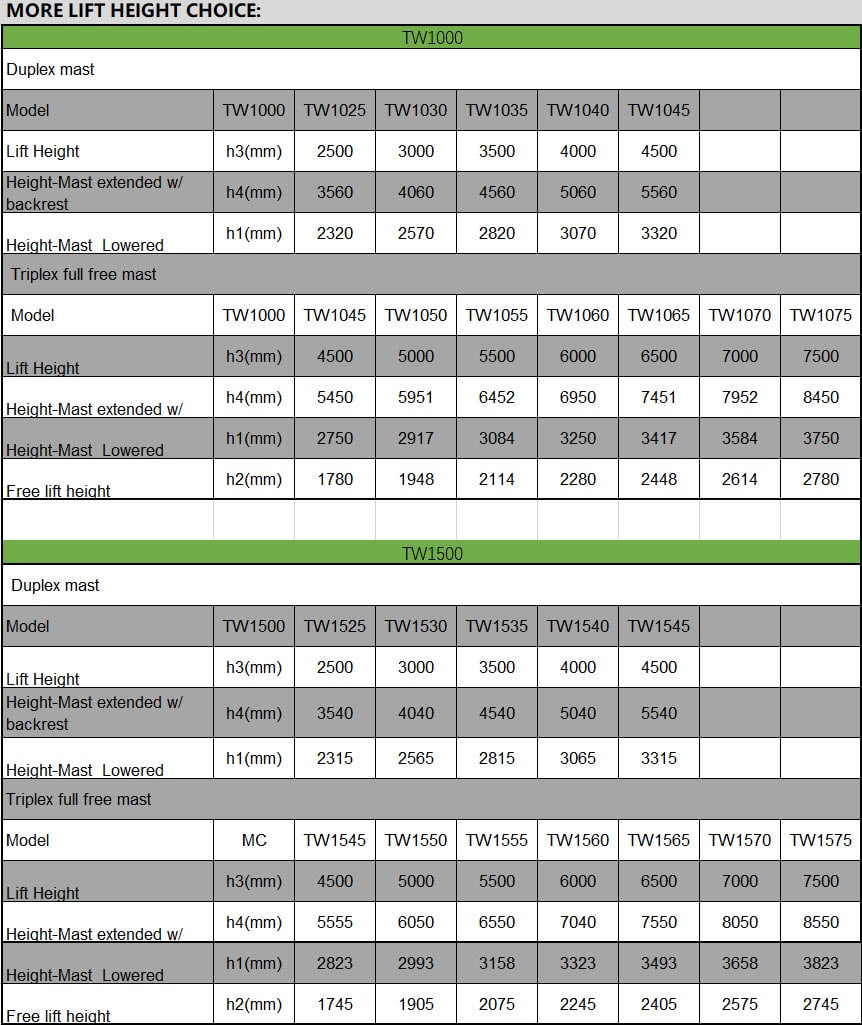

Optional lift height: 2500-7500mm ,and no loading weight missing under 5500mm
The min. width of aisle is 1510mm;
Colored monitor for triplex mast;
Soft backrest;
More Product Storage – Up to 60% increase;
More efficient use of available space
A narrow classis design, small battery compartment and tiller arm steering with 180° range give this compact stacker excellent maneuverability even in limited space.
