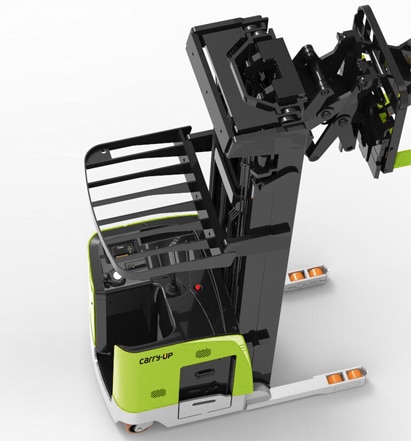

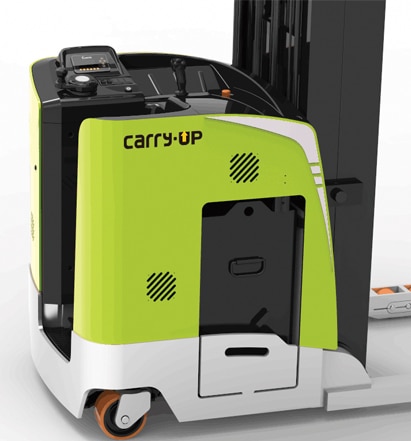

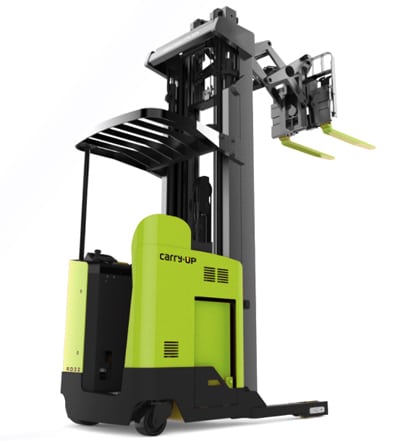

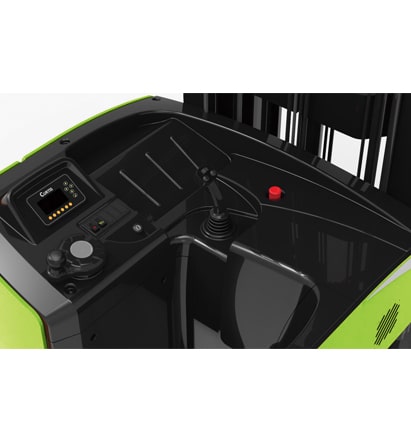

CQDH15CH Stand Type Electric Fork Reach Truck
Stand Type Electric Fork Reach Truck
CQDH15CH
Double Scissors
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specification
- 3D VIEW
- Chart
| 1.1 | Manufacturer | CARRYUP | |||
| 1.2 | Model | CQDH15H | |||
| 1.3 | Power | Electroc | |||
| 1.4 | Operator Type | stand | |||
| 1.5 | Load Capacity | Q | ib.(kg) | 3200 lbs(1450 kg) | |
| 1.6 | Load Centre | c | in.(mm) | 23.6＂(600mm) | |
| 1.8 | Load Distance | forks retracted | x | in.(mm) | 12.6＂(287mm) |
| 1.9 | Wheel Base | y | in.(mm) | 64.96＂(1650mm) | |
| 2.1 | Truck Weight | less battery | ib.(kg) | 8466 lbs(3840kg) | |
| 2.2 | Axle loading(Front/Rear) | W/O Load,forks retracted | ib.(kg) | 4336 lbs(1967kg)/6,069 lbs(2753kg) | |
| With Load,forks extension | ib.(kg) | 8139 lbs(3692kg)/5463 lbs(2478kg) | |||
| With Load,forks retracted | ib.(kg) | 10716 lbs(4861kg)/2885 lbs(1309kg) | |||
| 3.1 | Tyre Type | PU | |||
| 3.2 | Tyres | power unit side,drive | in.(mm) | 13.5＂×2.9＂(φ343mm×140mm) | |
| 3.3 | Tyres | load side | in.(mm) | 5.0＂×5.5＂(φ127mm×74mm) | |
| 3.4 | Castor Wheel | in.(mm) | 8.0＂×4.0＂(φ200mm×100mm) | ||
| 3.5 | Wheels | no.(x=driven) power unit side/load side | 1x,2/4 | ||
| 3.7 | Track Width | power unit side | b10 | in.(mm) | 31.5＂(800mm) |
| 4.1 | Fork Carriage Tilt | forward/backward | angle | ° | 3/4 |
| 4.2 | Mast | collapsed height | h1 | in.(mm) | 140＂(3556mm) |
| 4.3 | Free Lift | h2 | in.(mm) | 104＂(2642mm) | |
| 4.4 | Lift Height | h3 | in.(mm) | 321＂(8150mm) | |
| 4.5 | Mast | extended height w.load backrest | h4 | in.(mm) | 357＂(9068mm) |
| 4.7 | Overhead Guard Height | h6 | in.(mm) | 95＂(2413mm) | |
| 4.10 | Outtrigger Height | standard wheel | h8 | in.(mm) | 5.1＂(130mm) |
| 4.20 | Headlength | l2 | in.(mm) | 63.1＂(1604mm) | |
| 4.21 | Overall Width | power unit side | b1 | in.(mm) | 42.9＂(1098mm) |
| 4.22 | Fork Dimension | th×w×l | in.(mm) | 40/100/1070 | |
| 4.23 | Fork Carriage | 2A | |||
| 4.24 | Fork Carriage Width | incl.load backrest | b3 | in.(mm) | 32.44＂(824mm) |
| 4.25 | Width Across Forks | b5 | in.(mm) | 7.9＂-30.2＂(200-768mm) | |
| 4.26 | Inside Straddle | in 25mm increments | b4 | in.(mm) | 34＂-50＂(865-1270mm) |
| 4.28 | Reach | l4 | in.(mm) | 40.5＂(1030mm) | |
| 4.32 | Ground Clearance | centre wheelbase | in.(mm) | 1.97＂(50mm) | |
| 4.33 | Working Aisle Width | 1200×1000 deep | Ast | in.(mm) | 119＂(3023mm) |
| 4.33 | Working Aisle Width | 1000×1200 deep | Ast | in.(mm) | 123.3＂(3132mm) |
| 4.34 | Working Aisle Width | 800×1200 deep | Ast | in.(mm) | 121.6＂(3088mm) |
| 4.35 | Turning Radius | Wa | in.(mm) | 74.6＂(1895mm) | |
| 4.37 | Overall Length | length over outriggers | l7 | in.(mm) | 82.4＂(2094mm) |
| 4.71 | Backrest Height | in.(mm) | 62＂(1576mm) | ||
| 4.72 | Entry Step Height | in.(mm) | 10.2＂(260mm) | ||
| 4.73 | 3rd Post | in.(mm) | 1＂(25mm） | ||
| 5.1 | Travel Speed | w./w.o. load power unit first | km/h | 10/10 km/h | |
| forks first | 10/10 km/h | ||||
| 5.2 | Lift Speed | w./w.o. load | m/s | 0.33/0.5 m/s | |
| 5.3 | Lower Speed | w./w.o. load | m/s | 0.5/0.5 m/s | |
| 5.4 | Reach Speed | m/s | 0.3 | ||
| 5.10 | Brakes | Electroc 电动 | |||
| 6.1 | Traction Motor | 60 min.rating | kw | 6kw | |
| 6.2 | Lift Motor | 15% on time | kw | 13kw | |
| 6.3 | Max.Battery Box Size | l×h×w | mm | 413×985×788 | |
| 6.4 | Battery Voltage | nominal capacity 5h rating | V/Ah | 36 V/775Ah | |
| 6.5 | Battery Weight | minimum | kg | 1940 lbs(880kg) | |
| 8.1 | Type of Controller | traction/lift/steering | AC | ||
| Mast 门架落地高度 | mm | 95＂ | 107＂ | 119＂ | |
| Free Lift 自由提升高度 | mm | 59＂ | 71＂ | 83＂ | |
| Lift Height 起升高度 | mm | 210＂ | 240＂ | 270＂ | |
| Mast 门架最高高度 | mm | 246＂ | 276＂ | 306＂ | |
| Height 护顶架高度 | mm | 95＂ | 95＂ | 95＂ | |
