CQD10L CQD15L CQD20L CQD25L CQD30L

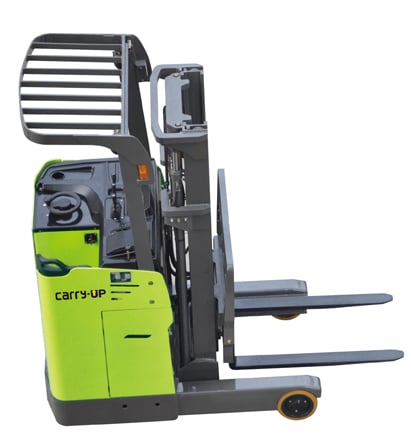

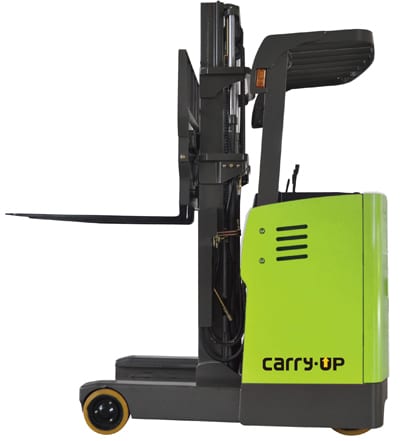

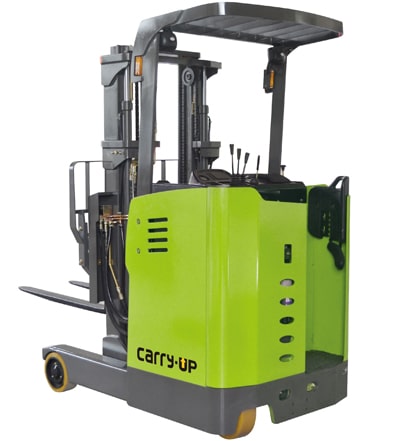

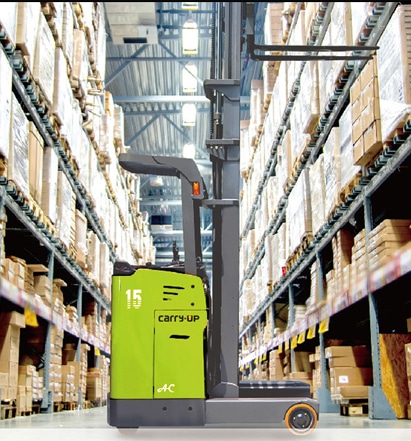

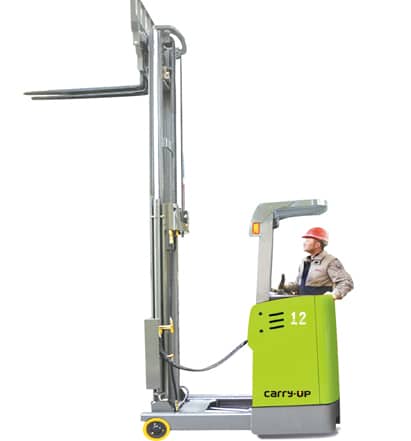

Stand Type Electric Reach Stacker
CQD10L,CQD15L,CQD20L,CQD25L,CQD30L
Optional Capacity: 1Ton, 1.2Tons, 1.5Tons, 2Tons, 2.5Tons, 3Tons,
Optional Lift Height: 3000-7200mm.
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- Mast Information
- Chart
- 3D VIEW
| CQD10L~CQD30L Stand Type Electric Reach Stacker | |||||||||||
| General | 1 | Model | CQD10L | CQD12L | CQD15L | CQD20L | CQD25L | CQD30L | |||
| 2 | Power Type | Electric | |||||||||
| 3 | Operation Type | Stand-on | |||||||||
| 4 | Rated Capacity | kg | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | |||
| 5 | Load Centre | c(mm) | 500 | ||||||||
| 6 | Wheelbase | y(mm) | 1170 | 1270 | 1345 | 1700 | 1700 | 1800 | |||
| Characteristic&Dimension | 7 | Lift Height | h1(mm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | ||
| 8 | Tyre | Front /rear type | mm | Solid PU/Solid PU | |||||||
| 9 | Front wheel size | mm | φ210×85 | φ210×85 | φ254×104 | φ276×114 | φ276×114 | φ267×135 | |||
| 10 | Driving wheel size | mm | φ230×90 | φ230×90 | φ343×108 | φ343×108 | φ343×108 | φ380×165 | |||
| 11 | Balance wheel size | mm | φ180×76 | φ180×76 | φ180×76 | φ180×76 | φ180×76 | φ204×76 | |||
| 12 | front/rear number (X=drive) | mm | 2 / 1X / 2 | 2 / 1X / 2 | 2 / 1X / 2 | 2 / 1X / 2 | 2 / 1X / 2 | 2 / 1X / 2 | |||
| 13 | Overall Dimension | Mast Lowered Height | h3(mm) | 1980 | 2080 | 2082 | 2084 | 2084 | 2125 | ||
| 14 | Free lift height | h2(mm) | / | / | 400 | 100 | 100 | 400 | |||
| 15 | Mast Extended Height | h4(mm) | 3902 | 3960 | 3960 | 3920 | 3920 | 3910 | |||
| 16 | Overhead Guard Height | h5(mm) | 2250 | 2250 | 2250 | 2320 | 2320 | 2320 | |||
| 17 | Overall Length | l1(mm) | 1864 | 2054 | 2239 | 2471 | 2471 | 2400 | |||
| 18 | Overall width | b1/b2(mm) | 1000 | 1000/984 | 1090 | 1258 | 1258 | 1230/1170 | |||
| 19 | Fork Dimensions | l/e/s(mm) | 1070×100×35 | 1070×100×35 | 1070×100×35 | 1070×100×45 | 1070×100×45 | 1070×125×45 | |||
| 20 | Forks spread | b5(mm) | 220～610 | 220～610 | 220～662 | 247～780 | 247～780 | 280～740 | |||
| 21 | Tilting angle(forward-backward) | α/β(°) | / | 3/5 | 3/5 | 3/5 | 3/5 | 3/5 | |||
| 22 | Turning Radius | Wa(mm) | 1394 | 1492 | 1594 | 1965 | 1965 | 2065 | |||
| 23 | Aisle Width for pallet 1000*1200 | Ast(mm) | 2428 | 2485 | 2650 | 2938 | 2938 | 2935 | |||
| 24 | Aisle Width for pallet 800*1200 | Ast(mm) | 2300 | 2400 | 2600 | 2794 | 2794 | 2800 | |||
| Performance | 25 | Speed | Travel (laden/unladen) | km/h | 6/7 | 7/8 | 7/8 | 9/10 | 9/10 | 8/10/2017 | |
| 26 | Lifting (laden/unladen) | mm/s | 110/160 | 150/190 | 150/190 | 220/380 | 240/320 | 220/320 | |||
| 27 | Lowering (laden/unladen) | mm/s | 270/250 | 190/170 | 190/170 | 310/260 | 340/290 | 340/290 | |||
| 28 | Steering type | EPS | EPS | EPS | EPS | EPS | EPS | ||||
| 29 | Service brake type | Mechanical type | Mechanical type | Mechanical type | Mechanical type | Mechanical type | Mechanical type | ||||
| 30 | Max.Gradeability(Laden/unladen) | % | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | |||
| 31 | Service weight(include battery) | kg | 1900 | 2000 | 2450 | 2960 | 2960 | 3460 | |||
| Power&Transmission | 32 | Motor | Drive motor | kw | 1.5 AC | 2.3AC | 4.5 AC | 5.5 AC | 5.5 AC | 5.5 AC | |
| 33 | Lift motor | kw | 2 DC | 3.5DC | 7.3 DC | 7.5 DC | 7.5 DC | 8.6AC | |||
| 34 | Battery | Voltage/Capacity | V/Ah | 24/280 | 24/420 | 48/300 | 48/400 | 48/400 | 48/400 | ||
| 35 | Weight | kg | 260 | 300 | 505 | 650 | 650 | 650 | |||
| 36 | Battery change type | Side pull | Side pull | Side pull | Side pull | Side pull | Side pull | ||||
More Lift Height Choice
| CQD10L,CQD15L,CQD20L,CQD25L,CQD30L | ||||||||
| Duplex Mast | ||||||||
| Model | CQD10L | |||||||
| Max.lift height | h3(mm) | 3000 | 3500 | 4000 | ||||
| Mast Extended Height （with backrest） | h4(mm) | 3902 | 4402 | 4902 | ||||
| Mast Lowered Height | h1(mm) | 1980 | 2230 | 2480 | ||||
| Free lift height | h2(mm) | 0 | 0 | 0 | ||||
| Duplex Mast | ||||||||
| Model | CQD12L | |||||||
| Max.lift height | h3(mm) | 3000 | 3500 | 4000 | 4500 | |||
| Mast Extended Height （with backrest） | h4(mm) | 3960 | 4460 | 4960 | 5460 | |||
| Mast Lowered Height | h1(mm) | 2080 | 2330 | 2630 | 2880 | |||
| Free lift height | h2(mm) | 0 | 0 | 0 | 0 | |||
| Triplex full free mast | ||||||||
| Model | CQD12L | |||||||
| Max.lift height | h3(mm) | 4500 | 5000 | 5500 | 6000 | |||
| Mast Extended Height （with backrest） | h4(mm) | 5460 | 5960 | 6460 | 6960 | |||
| Mast Lowered Height | h1(mm) | 2080 | 2247 | 2413 | 2580 | |||
| Free lift heigh | h2(mm) | 1480 | 1647 | 1813 | 1980 | |||
| Duplex Mast | ||||||||
| Model | CQD15L | |||||||
| Max.lift height | h3(mm) | 3000 | 3500 | 4000 | 4500 | |||
| Mast Extended Height （with backrest） | h4(mm) | 3960 | 4460 | 4960 | 5460 | |||
| Mast Lowered Height | h1(mm) | 2082 | 2332 | 2632 | 2882 | |||
| Free lift height | h2(mm) | 400 | 400 | 400 | 400 | |||
| Triplex full free mast | ||||||||
| Model | CQD15L | |||||||
| Max.lift height | h3(mm) | 4500 | 5000 | 5500 | 6000 | 6500 | 7000 | 7200 |
| Mast Extended Height （with backrest） | h4(mm) | 5460 | 5960 | 6460 | 6960 | 7460 | 7960 | 8160 |
| Mast Lowered Height | h1(mm) | 2142 | 2309 | 2475 | 2642 | 2809 | 2975 | 3042 |
| Free lift height | h2(mm) | 1542 | 1709 | 1875 | 2042 | 2209 | 2375 | 2442 |
