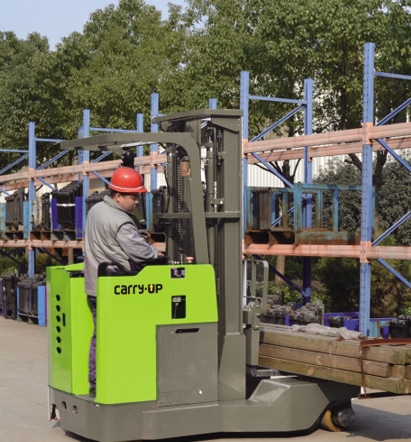

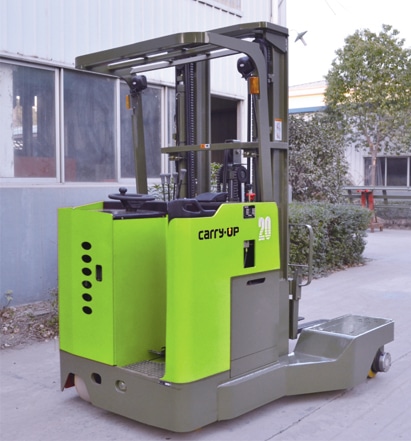

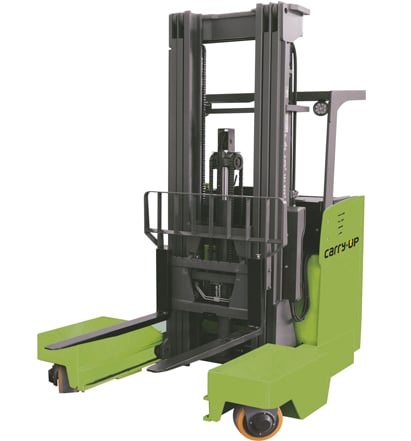

CSD15/CSD20/CSD25 Four Way Electric Reach Truck

Four Way Electric Reach Truck

CSD15/CSD20/CSD25

Capacity: 1.5tons, 2tons, 2.5tons

Lift Height:3m~7m

24-Hour Online Support
Global Service Network
Technical Solutions

Specifications
Description
Mast Information
Chart
3D VIEW
Function

4-Direction Reach Truck CSD15~CSD25
General	1	Model			CSD15	CSD20	CSD25
	2	Power Type			Electric
	3	Operation Type			Stand on
	4	Rated Capacity		kg	1500	2000	2500
	5	Load Centre		mm	500
	6	Wheelbase		mm	1350	1700
Characteristic&Dimension	7	Lift Height		mm	3000	3000	3000
	8	Forks tilting　forward/backward		α/β(°)	3/5
	9	Tyre	Front /rear wheel type	mm	Solid PU
	10		Left front wheel,double,(Diameter*Width)	mm	φ267×65
	11		Right front wheel,right(D*W)	mm	φ267×135
	12		Rear Driving wheel size,single	mm	φ343*108	φ380×165
	13		Rear Balance wheel size,double	mm	φ180*76	φ204*76
	14		front/rear number(X=drive)	mm	2 / 1X
	15	Overall Dimension	Mast Lowered Height	mm	2080	2080
	16		Free lift height	mm	100	100
	17		Mast Extended Height (with backrest)	mm	3920	3920	3920
	18		Overhead Guard Height	mm	2320	2320	2320
	19		Height of pedal	mm	360	360
	20		Height of backrest	mm	920	920	920
	21		Reach Stroke	mm	545	545
	22		Overall Length	mm	2267	2488	2488
	23		Overall width	mm	1640	1800	1800
	24		Fork Dimensions	l/e/s(mm)	1070/100/35	1070×100×45
	25		Width overall forks	mm	220～662	247~780
	26		Ground Clearance	mm	80
	27	Turning Radius		mm	1615	1979
	28	Aisle Width for pallet 1000*1200		mm	2671	2881
Performance	29	Speed	Travel (laden/unladen)	km/h	7.5/8.5	7.8/9
Performance	30	Speed	Lift (laden/unladen)	mm/s	117/243	110/243
	31	Max.Gradeability(Straight travel)load/unload		%	≤10	≤10
	32	Max.Gradeability(Side travel)load/unload		%	≤5	≤5
	33	Service weight(include battery)		kg	2800	3800
Power&Transmission	34	Motor	Drive motor	kw	5.5AC
	35	Motor	Lift motor	kw	6.3DC	7.5DC
	36	Battery	Voltage/Capacity	V/Ah	48/300	48/400
	37	Battery change type		Mpa	Side pull	Side pull

4-Direction Reach Truck CSD15~CSD25

Optional capacity: 1.5tons, 2tons, 2.5tons.
Optional lift height: 3000-7200mm.
Environment-Friendly:

Low noise and non-pollution electricity energy adopted ensure 4-direction electric reach truck Environment-Friendly.

Cost-Saving:

Brushless AC driving motor, side-pull battery, ensure 30% energy saving, lower maintenance cost. American imported CURTIS controller, quick reaction, strong ability of acceleration and deceleration control, ensure equipment longer service life.
