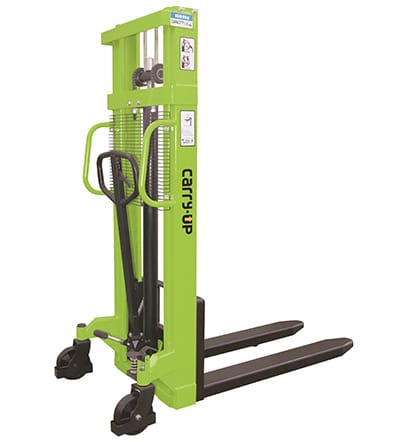

SDJ/SDJAS Manual Stacker Truck
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications

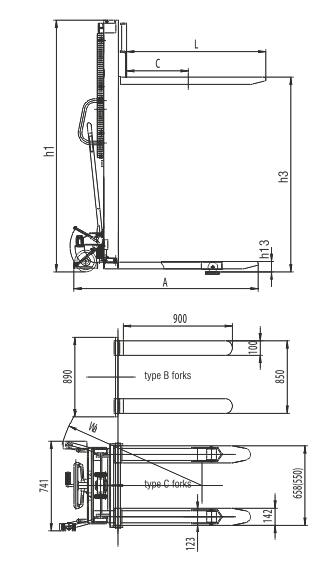

- 3D View

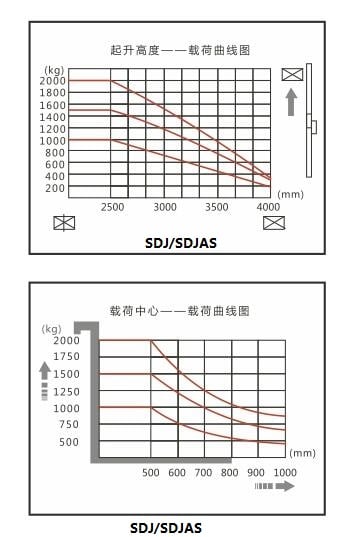

- Chart
- Description
| SDJ,SDJAS MANUAL STACKER TRUCK SPECIFICATION | ||||||||||||||
| Specification | 1 | Model | SDJ1016/SDJAS1016 | SDJ1025/SDJAS1025 | SDJ1030/SDJAS1030 | SDJ1516/SDJAS1516 | SDJ1525/SDJAS1525 | SDJ1530/SDJAS1530 | SDJ2016/SDJAS2016 | |||||
| 2 | Load capacity | kg | 1000 | 1000 | 1000 | 1500 | 1500 | 1500 | 2000 | |||||
| 3 | Load center | c(mm) | 500 | 500 | 500 | 400 | 400 | 400 | 400 | |||||
| 4 | Service weight | kg | 250 | 290 | 316 | 270 | 310 | 336 | 290 | |||||
| 5 | Lowered mast height | h1(mm) | 2080 | 1830 | 2080 | 2080 | 1830 | 2080 | 2080 | |||||
| 6 | Lifting height | h3(mm) | 1600 | 2500 | 3000 | 1600 | 2500 | 3000 | 1600 | |||||
| 7 | Overall height | h4(mm) | 2080 | 3000 | 3500 | 2080 | 3000 | 3500 | 2080 | |||||
| 8 | Fork lowered height | h13(mm) | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |||||
| 9 | Overall length | l1(mm) | 1280 | 1280 | 1280 | 1280 | 1280 | 1280 | 1280 | |||||
| 10 | Overall width | b1(mm) | 700/980 | 700/980 | 700/980 | 700/980 | 700/980 | 700/980 | 700/980 | |||||
| 11 | Fork dimensions | s/e/l(mm) | Forge fork:35×100×900, fixed type 60×142×1100, mobile type60×142×900 | |||||||||||
| 12 | Width overall forks | b5(mm) | 550/660 | 550/660 | 550/660 | 550/660 | 550/660 | 550/660 | 550/660 | |||||
| 13 | Ground clearance | m1(mm) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |||||
| 14 | Turning radius | mm | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | |||||
| 15 | Lifting speed laden/unladen | mm/stroke | 9.5/10.5 | 9.5/10.5 | 9.5/10.5 | 9.5/10.5 | 9.5/10.5 | 9.5/10.5 | 9.5/10.5 | |||||
| 16 | Lowering speed laden/unladen | mm/s | Manual control | |||||||||||
Carryup Hand Stacker
1：High quality mast steel ensures rigidity, durability.
2：Integral pump, which prevents loosening, leak-proof.
3：High efficiency pump, operating lighter, more comfortable.
4：Lifting speed keeps smooth regardless of loading weight,which is more safe
5：The stacker can be lifted by handle or foot pedal.
6：Hand control valve precise control convenience.
7：Set the active safety valve to prevent overloading of use.
8：Maintenance-free design, ensures security, reduces service cost.
Carryup Hand Stacker of Straddle Legs
1：C-steel ensures high capacity, rigidity.
2：Oil leaking-proof pump, 2 years warranty.
3：180mm big steering wheel design.
4：Option with adjustable wide legs
Option with adjustable
wide legs
flexible and simple
Manual stacker is characterized by smooth lifting, compact structure, flexible transportation, simple operation etc. anti-leakage design
The cylinder is with anti-leakage design, piston rod is chrome plated.
sturdy and compact
It is suitable for cargo handling and stacking at factories, workshops, warehouses, stations, and docks.
