BFS Stainless Steel Pallet Truck
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- 3D View
- Description

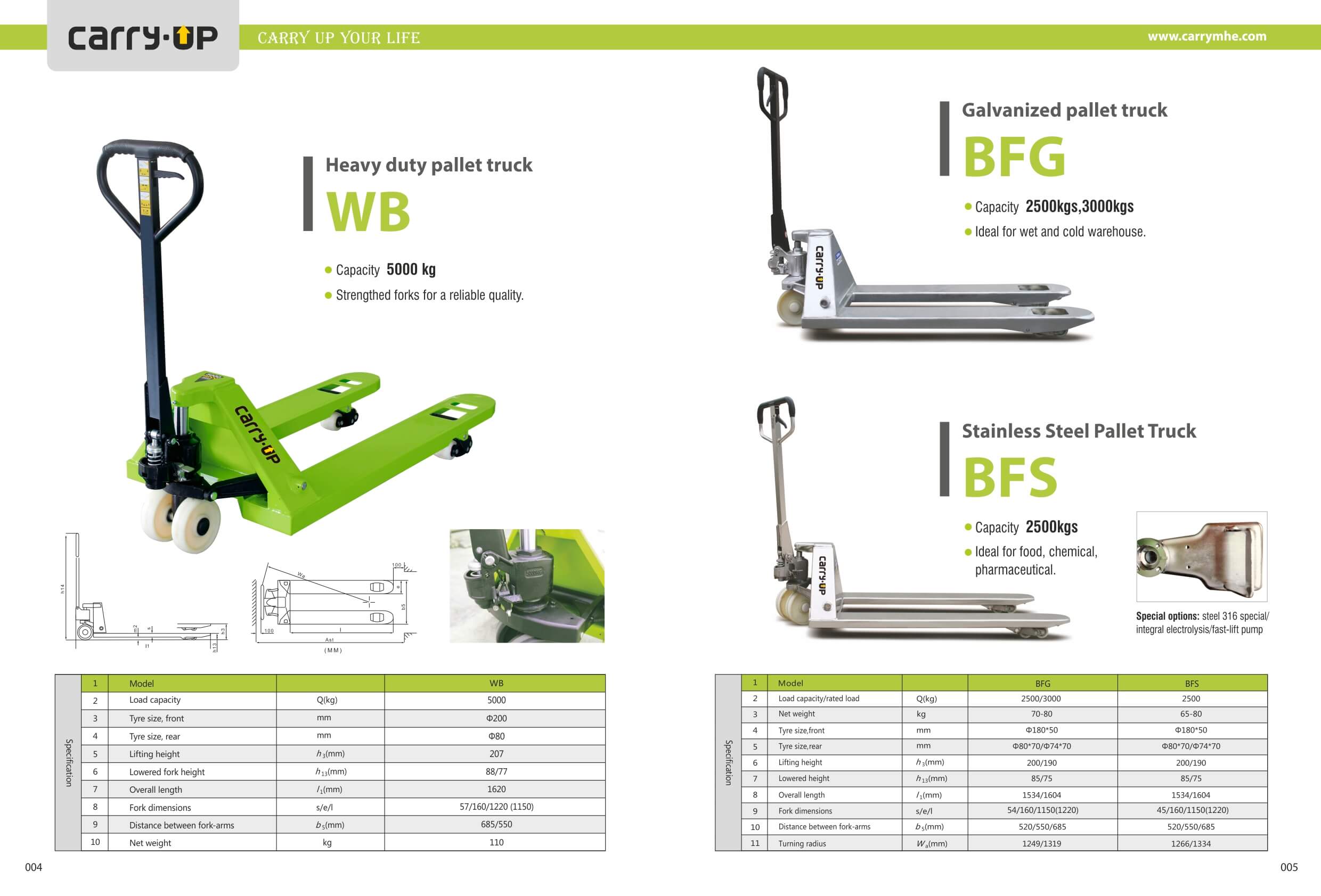

| CARRY•UP SPECIFICATION | |||||||||
| Specification | 1 | Model | BFS (stainless steel) | ||||||
| 2 | Load Capacity | kg | 2500 | ||||||
| 3 | Tyre size, front | mm | ￠180×50 | ||||||
| 4 | Tyre size, rear | mm | ￠80×70/￠74×70 | ||||||
| 5 | Lifting height | h3(mm) | 200/190 | ||||||
| 6 | Lowered height | h13(mm) | 85/75 | ||||||
| 7 | Overall length | l1(mm) | 1534/1604 | ||||||
| 8 | Fork dimensions | s/e/l(mm) | 45/160/1150(1220) | ||||||
| 9 | Net weight | kg | 65-80 | ||||||
| 10 | Turning radius | mm | 1266/1334 | ||||||
| 11 | Width overall forks | b5(mm) | 520/550/685 | ||||||
Carryup stainless steel hand pallet truck is specially designed for highly corrosive chemical environment, hygienic clean environment, low temperature environment or long-term wet stainless steel hand pallet truck is specially designed for highly corrosive chemical environment, hygienic clean environment, low temperature environment or long-term wet environment applicationsnv
Stainless Steel Hand Pallet Truck
Rated capacity: 2500KG
Pump: stainless steel pump
Wheel: Nylon
Fork size: customizableironment applicationsess steel hand pallet truck is specially designed for highly corrosive chemical environment, hygienic clean environment, low temperature environment or long-term wet environment applications
Carryup is committed to the research, development and production of stainless steel, galvanized and galvanization techniques replacement products.
Carryup presents a complete stainless steel series, ranging from hand pallet truck, manual & semi-electric stackers, 1500kg full electric economical pallet trucks to electric rider pallet trucks and stackers. Perfect solution for food processing, chemical or pharmaceutical sectors and other industries where complete hygiene is needed.
