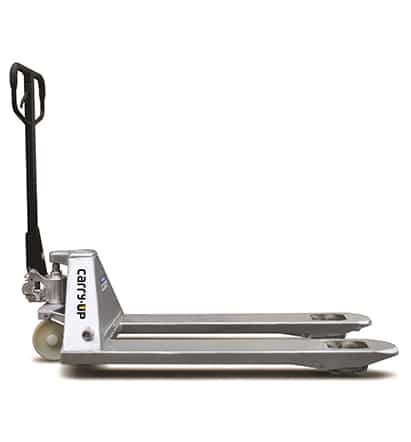

BFG Galvanized Pallet Truck
Galvanized Pallet Truck
BFG
Load Capacity: 2500kgs,3000kgs
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- 3D View
- Benefits & Features
| |||||||||
| Specification | 1 | Model | BFG (galvanized) | ||||||
| 2 | Load Capacity | kg | 2500/3000 | ||||||
| 3 | Tyre size, front | mm | ￠180×50 | ||||||
| 4 | Tyre size, rear | mm | ￠80×70/￠74×70 | ||||||
| 5 | Lifting height | h3(mm) | 200/190 | ||||||
| 6 | Lowered height | h13(mm) | 85/75 | ||||||
| 7 | Overall length | l1(mm) | 1534/1604 | ||||||
| 8 | Fork dimensions | s/e/l(mm) | 54/160/1150(1220) | ||||||
| 9 | Net weight | kg | 70-80 | ||||||
| 10 | Turning radius | mm | 1249/1319 | ||||||
| 11 | Width overall forks | b5(mm) | 520/550/685 | ||||||
Galvanized Hand Pallet Truck
Rated capacity: 2500KG、3000kgs
Pump: galvanized pump
Wheel: Nylon、PU
Fork size: customizable
Galvanized hand pallet truck has higher corrosion resistance than general organic paint coating. But it cannot be used in other chemically corrosive environments
Carryup is committed to the research, development and production of stainless steel, galvanized and galvanization techniques replacement products.
