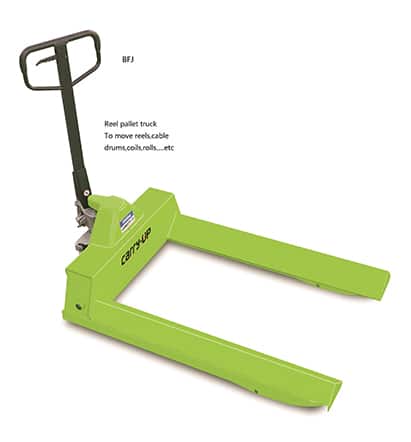

BFJ Reel Carrier Pallet Truck
Reel Carrier Pallet Truck
BFJ
Capacity: 2Tons
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- 3D View
- Description
CARRY•UP SPECIFICATION | |||||||||
Specification | 1 | Model | BFJ | ||||||
2 | Load Capacity | kg | 2000 | ||||||
3 | Tyre size, front | mm | ¢180×50 | ||||||
4 | Tyre size, rear | mm | ¢80×70/¢74×70 | ||||||
5 | Lifting height | h3(mm) | 200/190 | ||||||
6 | Lowered fork height | h13(mm) | 85/75 | ||||||
7 | Overall length | l1(mm) | 1534/1604 | ||||||
8 | Fork dimensions | s/e/l(mm) | 54/160/1150 | ||||||
9 | Distance between fork-arms | b5(mm) | 1000 | ||||||
10 | Bale diameter | mm | ¢180~1200 |
Reel Carrier Pallet Truck
BFJ
Capacity: 2Tons
