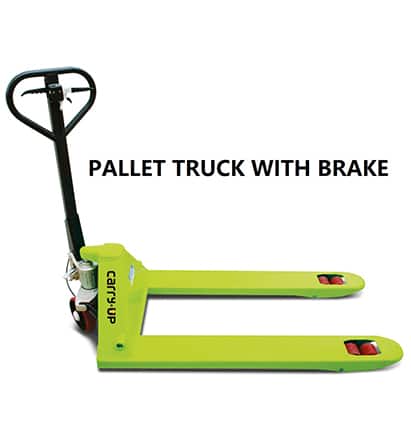

BFB Pallet Truck
Pallet Truck With Brake/Low Profile Pallet Truck
BFB/BFA-L
Capacity: 1.5Tons,2Tons,2.5Tons
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- Features
| CARRY•UP BFB/BFA-L PALLET TRUCK SPECIFICATION | |||||||||
| Specification | 1 | Model | BFB | BFAL52 | BFAL65 | ||||
| 2 | Load Capacity | kg | 2500 | 1500 | 2000 | ||||
| 3 | Tyre size, front | mm | ￠180×50 | ￠150 | ￠150 | ||||
| 4 | Tyre size, rear | mm | ￠80×70/￠74×70 | ￠50 | ￠58 | ||||
| 5 | Lifting height | h3(mm) | 200/190 | 157 | 160 | ||||
| 6 | Lowered fork height | h13(mm) | 85/75 | 52 | 65 | ||||
| 7 | Overall length | l1(mm) | 1534/1604 | 1547/1617 | 1547/1617 | ||||
| 8 | Fork dimensions | s/e/l(mm) | 1150 | 1150/1220 | 1150/1220 | ||||
| 9 | Distance between fork-arms | b5(mm) | 520/550/685 | 550/685 | 550/685 | ||||
| 10 | Bale diameter | mm | ~ | ~ | ~ | ||||
Features:
Pallet truck with brake system can conveniently cease the truck an navigate ramps.
