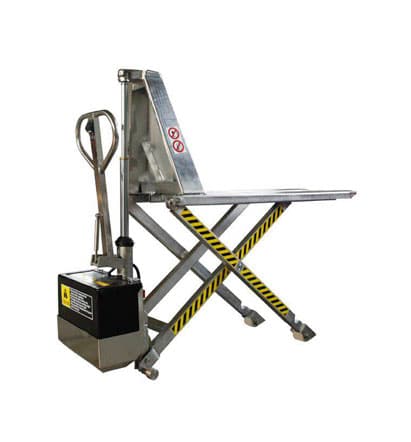

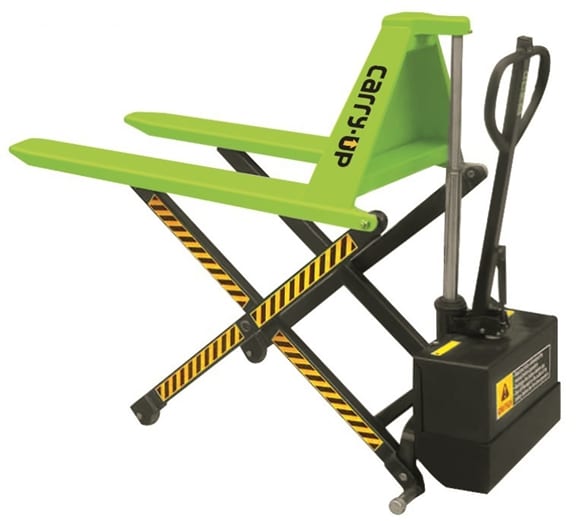

JF7D Semi-Electric High Lift Scissor Truck
Semi-Electric High Lift Scissor Truck
JF7D/JFD8
Capacity: 1ton and 1.5Tons
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- 3D View
- Description
| CARRY•UP SPECIFICATION | |||||||||
| Specification | 0 | Semi-Electric High Lift Scissor Truck JF7D | |||||||
| 1 | Model | JF7D | |||||||
| 2 | Rated capacity | kg | 1000 | 1500 | |||||
| 3 | Min./Max fork height | mm | 85/800 | 85/800 | |||||
| 4 | Fork width | b(mm) | 520/680 | 520/680 | |||||
| 5 | Fork length | l(mm) | 1140 | 1170 | |||||
| 6 | Battery | V/Ah | 12/63 | 12/63 | |||||
| 7 | Charger(input/output) | V | 220~240/12 | 220~240/12 | |||||
| 8 | Net weight | kg | 142/148 | 168/188 | |||||
Lifting by electric and hand
lowering by hand
single cylinder system guarantees:No risk of oil leakage
No risk of dropping to the second piston suddenly.
Safety:patented safety system on handle to prevent accidental
tough of the release thus causing sudden sliding down of the fork,you can screw the release handle tight in slow and quick lifting position.
