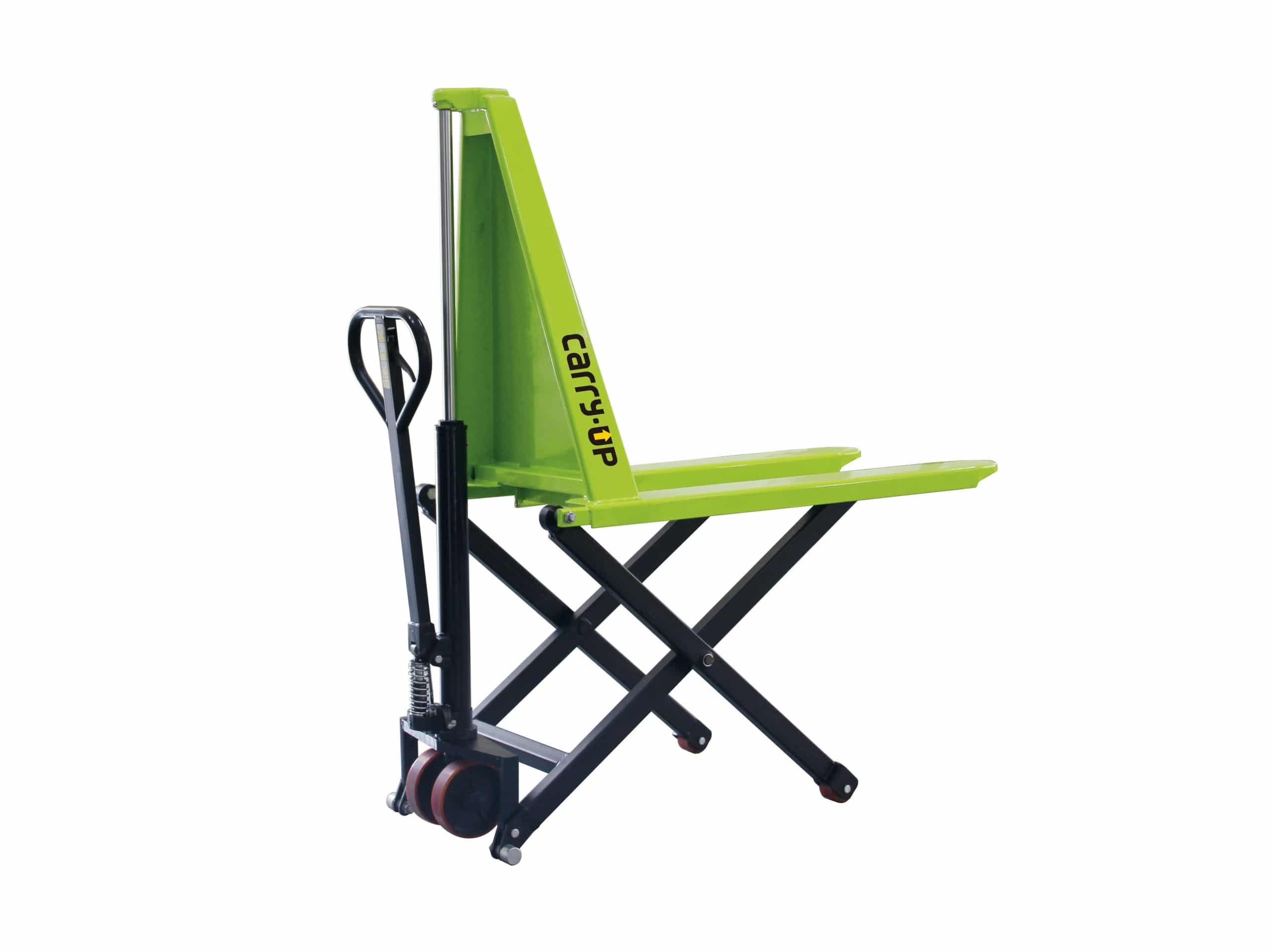

JF High Lift Scissor Truck

Features:

• Ideal design with numerous possibilities makes this unit very suitable as pallet truck/scissor lift table.
• Telescopic jack composes of 3 piston rods creating light pumping force giving great rigidity.
• Support legs come into operation automatically.
• It prevents the unit from moving when the forks are raised to keep the safety of the operator.
• Truck automatically slows the descending speed when heavy goods loaded to prevent cargo damage.
• 210 degree turning radius.
• 2 lateral stabilizers when raised ensure good stability.

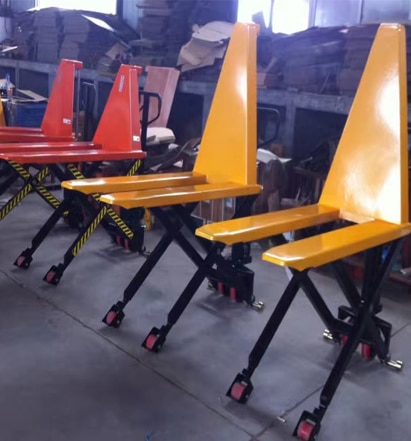

Manual High Lift Pallet Truck

for handling or working platforms

The high lift truck can be used for handling or working platforms. Its compact body design, fast lift pump function, can save time and improve labor efficiency; widely used in factories, workshops, warehouses, supermarkets, etc. Locations, lifting range can be adapted to different handling heights, reducing the trouble of stopping the cargo.

Newly-designed

Newly-designed big cylinder can achieve capacity of 1000/1500 kg.

The design of the cylinders is simple, and the truck can be used as hand pallet truck or lifting platform.

The unique design of the hydraulic valve achieves automatic deceleration control. The deceleration rate remains stable regardless of heavy load or empty load, which prevents damage to the cargo.

stability & optimum braking performance

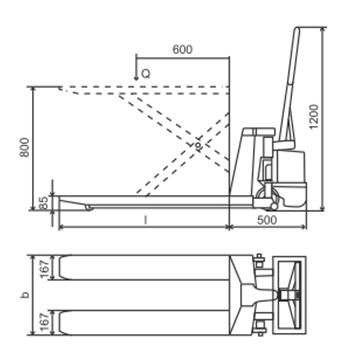

When the forks are lowered to a height of 420mm, the front support wheel and the adjustable stabilizer will automatically extend to the ground to ensure optimal stability and optimum braking performance.
