DB 2000KGS Hand Pallet Truck
2000KGS Hand Pallet Truck
DB
Capacity: 2tons
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- 3D View
- Benefits & Features
| CARRY•UP DB SPECIFICATION | |||||||||
| Specification | 1 | Model | DB | ||||||
| 2 | Capacity | kg | 2000 | ||||||
| 3 | Service weight | kg | 55-65 | ||||||
| 4 | Tyre size, front | mm | ￠160×50 | ||||||
| 5 | Tyre size, rear | mm | ￠70×60 | ||||||
| 6 | Lifting height | h3(mm) | 190 | ||||||
| 7 | Lowered height | h13(mm) | 75 | ||||||
| 8 | Fork dimensions | s/e/l(mm) | 54/160/1150 | ||||||
| 9 | Width overall forks | b5(mm) | 520/550/685 | ||||||
| 10 | Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1730/1800 | ||||||
| 11 | Aisle width for pallets 800×1200 lengthways | Ast(mm) | 1780/1800 | ||||||
| 12 | Ground clearance,centre of wheelbase | m2(mm) | 23 | ||||||
| 13 | Height of tiller in drive position max | h14(mm) | 1177 | ||||||

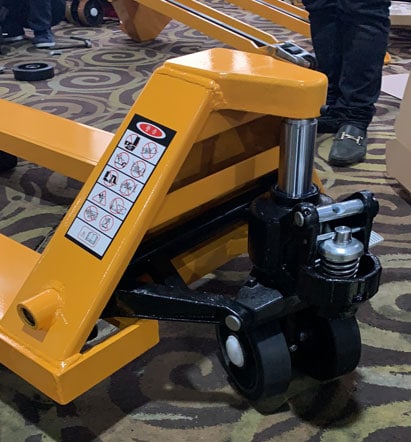

- Welding pump, with leaking proof design.
- With overloading safety valve.
- Chrome plate piston.
- Different fork length is available.
- Option: rubber wheel, nylon wheel, polyurethane wheel.
- Lowering position:
Pull up the fingers tip control handle to lower the truck.
- Neutral position:
stay the position during move.
- Lifting position:
pull down the tip control, press the pump to raise the truck.
- Optimized round fork tips ensure easy operation.
- 50mm fork thickness ensures high capacity.
- Curve design on the fork tips help pallets entry in/out
- With copper bushin, no need to add grease, reduce maintenance cost
- Standard epoxy powder coat finish which is resistant to chips and normal corrosion.
- Exceptionally strong but light weight steel construction, service weight is only 55kgs.
- With welded joints and reinforced fork tips for most durability in the toughest applications.
- 3 position hand control- Raise,Lower,Neutral.
- Excellent turning angle of 190 degrees facilities.
- Number of pump strokes 12 times, lift height per stroke 11mm.
Remark: Special size for width and length can be made according to customer’s requirement.Reliable oil leak-proof hydraulic system.
