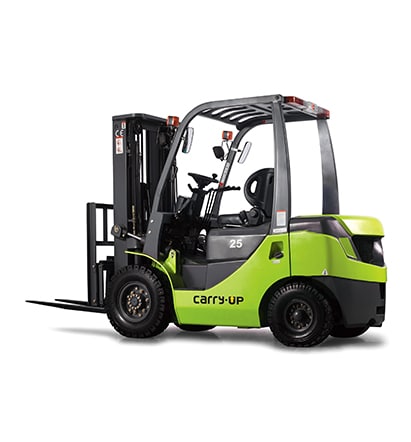

FD20/FD25 Diesel Forklift

Diesel Forklift

FD20/FD25

Capacity: 2tons, 2.5tons

Max.lift height :2000-6000mm

CARRY.UP FD20~FD25 DIESEL FORKLIFT SPECIFICATION
General	1	Model				FD20	FD25
	2	Power Type				Diesel	Diesel
	3	Rated Capacity			kg	2000	2500
	4	Load Centre			mm	500	500
Characteristic&Dimension	5	Lift Height			mm	3000	3000
	6	Fork Size		L×W×T	mm	1070×120×40	1070×120×40
	7	Mast Tilt Angle		F/R	Deg	6°/12°	6°/12°
	8	Front Overhang (Wheel center to fork face)			mm	470	470
	9	Ground Clearance（Bottom of mast			mm	120	120
	10	Overall Dimension		Length to face of fork(Without fork)	mm	2600	2600
	11			Overall Width	mm	1150	1150
	12			Mast Lowered Height	mm	2055	2055
	13			Mast Extended Height(With backrest)	mm	4050	4050
	14			Overhead Guard Height	mm	2070	2070
	15	Turning Radius (outside)			mm	2310	2310
Performance	16	Speed		Travel (No load)	km/h	19	19
	17	Speed		Lifting (Full load)	mm/s	530	530
	18	Max.Gradeability (No load/Full load)			%	20	20
Chassis	19	Tire		Front	mm	7.00-12-12PR	7.00-12-12PR
	20	Tire		Rear	mm	6.00-9-10PR	6.00-9-10PR
	21	Wheelbase			mm	1600	1600
	22	Service weight			kg	3560	3700
Power&Transmission	23	Battery	Voltage/Capacity		V/Ah	12/80	12/80
	24	Engine	Model			C240 PKJ	C240 PKJ
	25		Manufacture			ISUZU	ISUZU
	26		Rated output/r.p.m.		kw	35.4/2500	35.4/2500
	27		Rated torque/r.p.m.		N·m	139/1800	139/1800
	28		No.of Cylinder			4	4
	29		Bore×Stroke		mm	86×102	86×102
	30		Displacement		cc	2369	2369
	31		Fuel Tank Capacity		L	60	60
	32	Transmission	Type			Hydraulic	Hydraulic
	33	Transmission	Stage	FWD/RVS		1/1	1/1
