FD100/FD120 Diesel Forklift

Diesel Forklift

FD100/FD120

Capacity: 10tons, 12tons

Max.lift height:2000-6000mm

FD100/FD120 Diesel Forklift Specification
General	1	Model				FD100	FD120
	2	Power Type				Diesel	Diesel
	3	Rated Capacity			kg	10000	12000
	4	Load Centre			mm	600	600

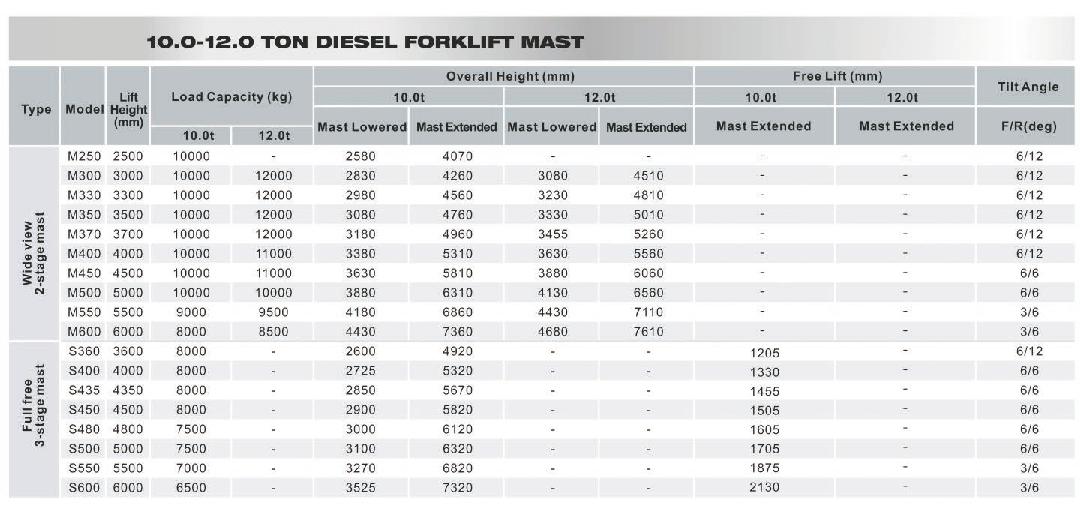

Characteristic&Dimension	5	Lift Height			mm	3000~6000	3000~6000
	6	Fork Size		L×W×T	mm	1520×175×85	1520×180×100
	7	Mast Tilt Angle		F/R	Deg	6°/12°	6°/12°
	8	Fork Overhang (Wheel center to fork face)			mm	750	770
	9	Ground Clearance（Bottom of mast）			mm	240	250

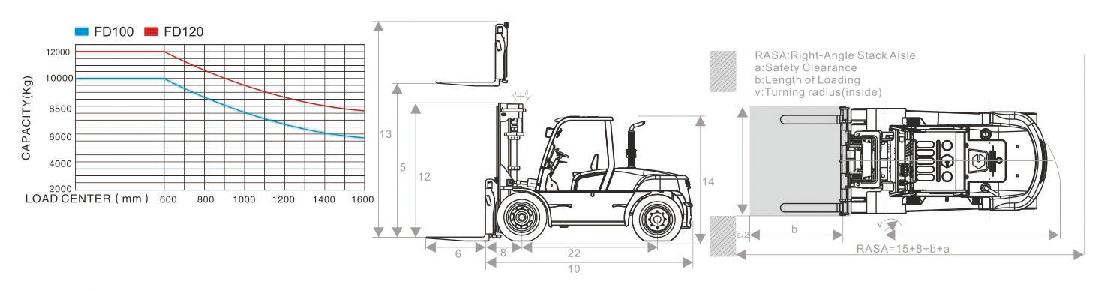

	10	Overall Dimension		Length to face of fork(Without fork)	mm	4280	4700
	11			Overall Width	mm	2170	2200
	12			Mast Lowered Height	mm	2830	3080
	13			Mast Extended Height(With backrest)	mm	4300	4510
	14			Overhead Guard Height	mm	2570	2590
	15	Turning Radius (outside)			mm	3970	4700
Performance	16	Speed		Travel ( unload)	km/h	30	28
	17	Speed		Lifting (Full load)	mm/s	270	280
	18	Max.Gradeability			%	20	20
Chassis	19	Tyre		Front	mm	9.00-20-14PR	9.00-20
	20	Tyre		Rear	mm	9.00-20-14PR	9.00-20
	21	Wheelbase			mm	2800	3200
	22	Self weight			kg	13000	14500
Power&Transmission	23	Battery	Voltage/Capacity		V/Ah	(12V/80Ah) x 2	(12V/80Ah) x 2

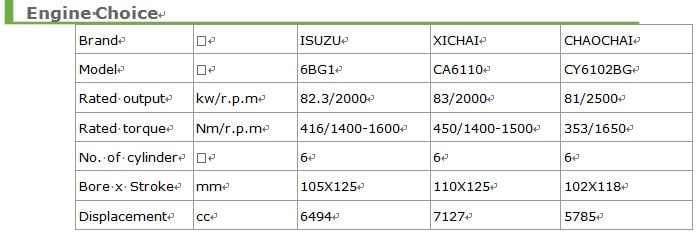

	24	Engine	Model			6BG1	6BT5.9-C130
	25		Manufacture			ISUZU	DONGFENG CUMMINS
	26		Rated output/r.p.m.		kw	82.3/2000	97/2200
	27		Rated torque/r.p.m.		N·m	416/1400-1600	560/1500
	28		No.of Cylinder			6	6
	29		Bore×Stroke		L	105×125	102×120
	30		Displacement		cc	6494	5900
	31		Fuel Tank Capacity		L	140	150
	32	Transmission	Type			hydraulic	hydraulic
	33	Transmission	Stage	FWD/RVS		2/2	2/2
