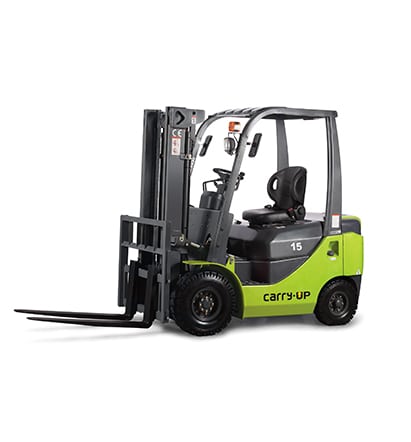

FD10/FD15/FD18 Diesel Forklift

Diesel Forklift

FD10,FD15,FD18

Capacity: 1tons,1.5tons,1.8tons

Max.lift height :2000-6000mm

1.0~1.8T Diesel Forklift Specification
General	1	Model				FD10	FD15	FD18
	2	Power Type				Diesel	Diesel	Diesel
	3	Rated Capacity			kg	1000	1500	1800
	4	Load Centre			mm	500	500	500
Characteristic&Dimension	5	Lift Height			mm	3000	3000	3000
	6	Fork Size		L×W×T	mm	920×120×35	920×120×35	920×120×35
	7	Mast Tilt Angle		F/R	Deg	6°/12°	6°/12°	6°/12°
	8	Front Overhang (Wheel center to fork face)			mm	420	420	420
	9	Ground Clearance（Bottom of mast）			mm	110	110	110
	10	Overall Dimension		Length to face of fork(Without fork)	mm	2215	2295	2295
	11			Overall Width	mm	1086	1086	1086
	12			Mast Lowered Height	mm	1995	1995	1995
	13			Mast Extended Height(With backrest)	mm	3940	3940	3940
	14			Overhead Guard Height	mm	2040	2040	2040
	15	Turning Radius (outside)			mm	1975	2055	2055
Performance	16	Speed		Travel (No load)	km/h	15	15	15
	17	Speed		Lifting(Full load)	mm/s	460	450	440
	18	Max.Gradeability (No load/Full load)			%	20	20	20
Chassis	19	Tire		Front	mm	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR
	20	Tire		Rear	mm	5.00-8-8PR	5.00-8-8PR	5.00-8-8PR
	21	Wheelbase			mm	1400	1400	1400
	22	Self weight			kg	2490	2820	3000
Power&Transmission	23	Battery	Voltage/Capacity		V/Ah	12/80	12/80	12/80
	24	Engine	Model			C240 PKJ	C240 PKJ	C240 PKJ
	25		Manufacture			ISUZU	ISUZU	ISUZU
	26		Rated output/r.p.m.		kw	35.4/2500	35.4/2500	35.4/2500
	27		Rated torque/r.p.m.		N·m	139/1800	139/1800	139/1800
	28		No.of Cylinder			4	4	4
	29		Bore×Stroke		mm	86×102	86×102	86×102
	30		Displacement		cc	2369	2369	2369
	31		Fuel Tank Capacity		L	45	45	45
	32	Transmission	Type			Hydraulic	Hydraulic	Hydraulic
	33	Transmission	Stage	FWD/RVS		1/1	1/1	1/1
