CDP12V/CDP15V SMART Three Wheels Electric Forklift

Three Wheels Electric Forklift

CDP12V/CDP15V SMART

Capacity: 1.2tons, 1.5tons

Max.lift height :3000-6000mm

CARRY•UP CDP12V/CDP15V Three Wheels Electric Forklift
							Specification	1	Model		CDP12V	CDP15V
								2	Load Capacity	kg	1200	1500
3	Load Center		c(mm)	500	500
4	Wheel Type			Solid Rubber	Polyurethane
5	Wheelbase		y(mm)	972-1035	1218-1285
6	Wheel numbers, front/rear(x=driving wheel)			2/1×	2/1×
7	Thread,rear		mm	736	910

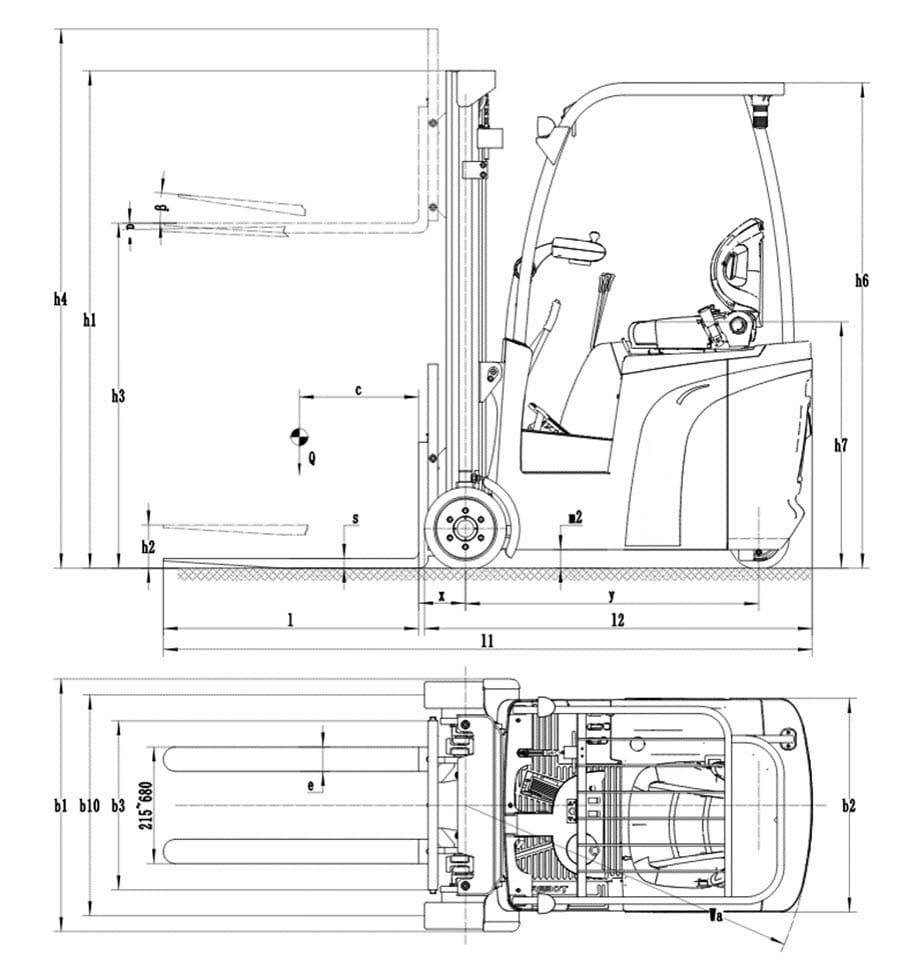

Dimensions	8	Lowered mast height		h1(mm)	2035	2050
	9	Max.lifting height		h3(mm)	3000	3000
	10	Extended mast height		h4(mm)	3811	3811
	11	Mast Tilt Angle, F/R		α/β(deg)	1°/5°	1°/5°
	12	Height of overhead gurad		h6(mm)	1983	1999
	13	Overall length		l1(mm)	2372	2785
	14	Length(barring forks)		l2(mm)	1452	1625
	15	Overall width		mm	880	1020
	16	Fork dimensions		S/e/l(mm)	35/100/950	40/100/1070
	17	Width over forks		b3/b4 (mm)	840/215	840/215
	18	Front overhang		x(mm)	251	261
	19	Aisle width, with pallet 1000×1200 crosswise		Ast(mm)	2670	2991
	20	Ground clearance		m1 (mm)	25	30
	21	Ground clearance		m2 (mm)	65	75
	22	Turning radius		mm	1184	1453
Performance	23	Speed	Travel Forward(Laden/unladen)	km/h	7/8	9/10
	24		Travel Backward(Laden/unladen)	km/h	6	6
	25		Lifting (Laden/unladen)	mm/s	150/170	135/190
	26		Falling(Laden/unladen)	mm/s	200/160	125/190
	27	Max. Traction		N	2800/2700	2800/2700
	28	Max.Gradeability(Laden/unladen)		%	6/10	8/15
	29	Service Weight（include battery ）		kg	2253	2460
	30	Motor	Driven Motor	kw	AC 2.5	AC 2.5
	31		Lift Motor	kw	DC 3	DC 3
	32		Steering motor	kw	/	/
	33	Battery	Voltage/noinal capacity	V/Ah	24/480	24/480
	34	Battery	Weight	kg	446	446
Other	35	Noise level operator’s ear,according to DIN12053		dB (A)	≤70
