FC15/FC20/FC25/FC30/FC35 Four Wheels Electric Forklift

Four Wheels Electric Forklift
FC15,FC20,FC25,FC30,FC35
Capacity: 1.5tons，2tons,2.5tons,3tons,3.5tons
Max.lift height :3000-6000mm
Request a Quick QuoteDownload Catalog
  • 24-Hour Online Support
  • Global Service Network
  • Technical Solutions

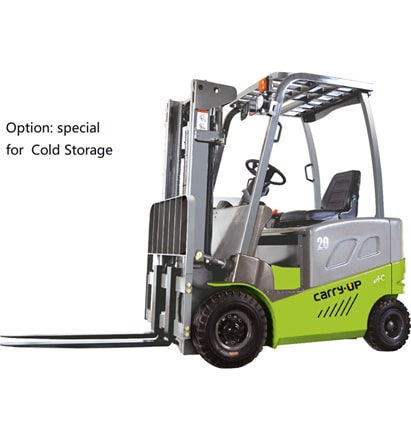

  • FC15
  • Specifications
  • Mast information
CARRY.UP FC15~FC35 Four Wheels Electric Forklift Truck
General1ModelFC15FC20FC25FC30FC35
2Power TypeElectric
3 Operation TypeSeated
4Rated capacitykg15002000250030003500
5Load Centrec(mm)500
6Assembly Level (GB5184)2A2A2A3A3A
Characteristic&Dimension7Lift heighth1(mm)30003000300030003000
8Free Lift Heighth2(mm)135140140140/
9TyreFront /rear TypePneumatic/PneumaticPneumatic/PneumaticPneumatic/PneumaticPneumatic/PneumaticSolid/Solid
10Front Tyre Size6.00-9-10PR21×8-9-16PR21×8-9-16PR23×9-10-16PR28×9-15
11Front Rim Size4.00E-96.00E-96.00E-96.50F-107.00T-15
12Rear Tyre Size16×6-8-10PR18×7-8-14PR18×7-8-14PR18×7-8-14PR18×7-8
13Rear Rim Size4.33R-84.33R-84.33R-84.33R-84.33R-8
14Front/rear Number (X=drive)2X / 22X / 22X / 22X / 22X / 2
15Overall DimensionTilting Angle Of Mast(forward-backward)α/β(°)6/106/106/106/106/12
16Mast Lowered Heighth3(mm)19951995199521002080
17Mast Extended Heighth4(mm)35803620362037203706
18Height-Mast Extended w/backresth5(mm)40304030403041304220
19Height of Overhead Guardh6(mm)21002100210021302200
20Height,Seat to Overhead Guardh7(mm)9309309309301020
21Min. Ground Clearance,Masth8(mm)80808080150
22Overall Lengthl1(mm)31303390342036153627
23Wheelbasey(mm)13251500150017001600
24Front Overhangx(mm)370420420418478
25Overall Widthb1/b2(mm)1080/10701160/11401160/11401180/11401225/1200
26Tread Front/rearb3/b4(mm)910/930950/980950/980970/9801000/992
27Fork Dimensionsl/e/s(mm)1070×100×351070×120×401070×120×401070×130×401070/122/50
28Distance Between Fork-armsb5(mm)220～930260～1000260～1000280～1060265～1060
29Aisle Width for pallet 1000*1200 crosswaysAst(mm)34603720373039203993
30Turning RadiusWa(mm)18902100211023002315
Performance31SpeedTravel (laden/unladen)km/h10/1210/1210/1210/1211.6/11.9
32Lifting (laden/unladen)mm/s300/230/260/220/131/283
33Max.Gradeability(Laden/unladen)%10/1210/1210/1210/1210/13
34Steering Type Hydraulic HydraulicHydraulicHydraulicHydraulic
35Service Brake Hydraulic HydraulicHydraulicHydraulicHydraulic
36Service Brake TypePedalPedalPedalPedalFoot brake
37Parking Brake Mechanical Mechanical Mechanical MechanicalHand brake
38Service Weight(include battery)kg29803850410044505130
Power&Transmission39MotorDrive Motor (S2 60)kwAC6.8AC6.8AC6.8AC9.1AC16.6
40Lift Motor (S3 15%)kwDC7.5DC7.5DC10DC10DC10
41BatteryCharger,voltage/currentV/A48/5048/7048/8048/8080/60
42Voltage/CapacityV/Ah48/40048/49048/56048/63080/500
43Weightkg6457508709601230
44Controller Brandcurtiscurtiscurtiscurtis/
45Controller Model1234E1234E1236E1236E/
46Noise Level to operator’s eardb(A)75757575/
47Max.Operating Pressure for attachmentsbar160160160160/
48Displacement of Gear Pump18162323/
49Type of Steering GearFull hydraulic steering gear with prior valva type
 Mast Specification;
FC15
 Duplex Mast
ModelUnitFC15
Max.lift heightmm250027003000330035003700400042504500
Height—Mast  Loweredh1mm174518451995214522452345254526702795
Height-Mast Extended with Backresth4mm353037304030433045304730503052805530
 Free lift heighth2mm135135135135135135135135135
Duplex Full free Mast
Model UnitFC15
Max.lift heightmm250027003000330035003700400042504500
Height—Mast  Loweredh1mm174518451995214522452345254526702795
Height-Mast Extended with Backresth4mm354037404040434045404740504052905540
Free lift heighth2mm702802952110212021302150216271752
Triplex full free MastFC15
 ModelUnitFC15
Max.lift heightmm36004000435045004800500055006000
Height Mast  Loweredh1mm17951930204520952195226524852655
Height-Mast Extended with Backresth4mm49405340539055405840604065407040
Free lift heighth2mm45285290210521352155220522552
FC20 & FC25
Duplex Mast
 Model UnitFC20
Max.lift heightmm250027003000330035003700400042504500
Height—Mast  Loweredh1mm174518451995214522452345254526702795
Height-Mast Extended with Backresth4mm353037304030433045304730503052805530
 Free lift heighth2mm140140140140140140140140140
Duplex Full free MastFC20 & FC25
Max.lift heightmm250027003000330035003700400042504500
Height—Mast  Loweredh1mm174518451995214522452345254526702795
Height-Mast Extended w/ Backresth4mm358037804080438045804780508053305500
 Free lift heighth2mm662762912106211621262146215871712
Triplex full free MastFC20 & FC25
Max.lift heightmm360040004200435045004800500055006000
Height—Mast  Loweredh1mm179519301995204520952195226024252645
Height-Mast Extended with Backresth4mm463550355235538555355835603565357035
Free lift heighth2mm15255275290210521352155220522552
 FC30
 Duplex MastFC30
Max.lift heightmm250027003000330035003700400042504500
Height—Mast  Loweredh1mm174519502100225023502450165027752900
Height-Mast Extended with Backresth4mm363038304130443046304830513053805630
 Free lift heighth2mm145145145145145145145145145
Duplex Full free MastFC30
Model UnitFC30
Max.lift heightmm250027003000330035003700400042504500
Height—Mast  Loweredh1mm185019502100225023502450265027752900
Height-Mast Extended with Backresth4mm363538354135443546354835513553855635
 Free lift heighth2mm714814964111412141314151416391764
 Triplex full free MastFC30
 ModelUnitFC30-36FC30-40FC30-42FC30-43.5FC30-45FC30-48FC30-50FC30-55FC30-60
Max.lift heightmm360040004200435045004800500055006000
Height—Mast  Loweredh1mm185019852050210021502250231524802700
Height-Mast Extended with Backresth4mm473051305330548056305930613066307130
 Free lift heighth2mm71384891396310131113117813431563
