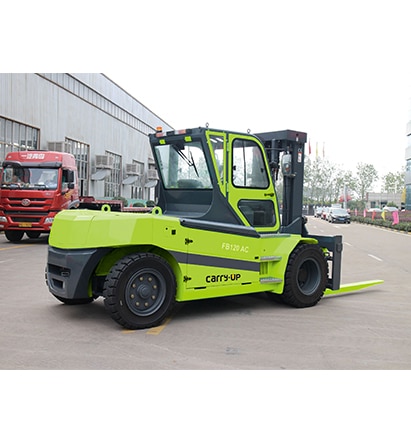

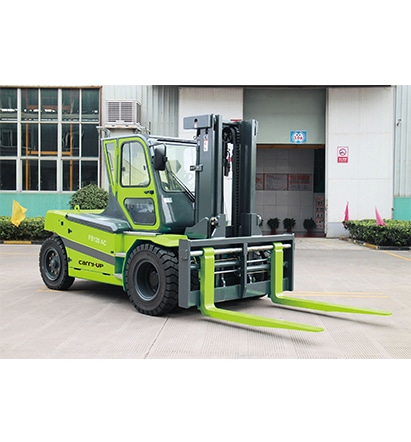

FB80/FB100/FB120 Four Wheels Electric Forklift
Four Wheels Electric Forklift
FB80/FB100/FB120
Capacity: 8tons, 10tons,12tons
Max.lift height :3000mm~7000mm
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
| FB80/FB100/FB120 Four Wheels Forklift Specification | |||||||
| Specification | 1 | Model | FB80 | FB100 | FB120 | ||
| 2 | Power type | electric | electric | electric | |||
| 3 | Rated Capacity | kg | 8000 | 10000 | 12000 | ||
| 4 | Load Centre | mm | 500 | 500 | 500 | ||
| 5 | Lifting Height | mm | 3000~7000mm | 3000~7000mm | 3000~7000mm | ||
| 6 | Fork Size | L×W×T | mm | 1220×150×70 | 1520×175×85 | 1520×180×100 | |
| 7 | Tilting Angle | F/R（α°/β°） | Deg | 6/10 | 6/10 | 6/10 | |
| Dimensions | 8 | Overall Dimension | Length to fork face（Without fork) | mm | 3680 | 4480 | 4480 |
| 9 | Overall Width | mm | 2200 | 2270 | 2270 | ||
| 10 | Mast Lowered Height | mm | 2600 | 2810 | 2810 | ||
| 11 | Mast Extended Height (with backrest) | mm | 4550 | 4550 | 4550 | ||
| 12 | Overhead Guard Height | mm | 2500 | 2650 | 2650 | ||
| 13 | Turning Radius | outside | mm | 3350 | 3850 | 3850 | |
| 14 | Turning Radius | Min. insecting aisle | mm | 3040 | 3200 | 3200 | |
| 15 | Front Overhang | mm | 650 | 750 | 750 | ||
| 16 | Tread | (Front/Rear) | mm | 1650/1700 | 1650/1700 | 1650/1700 | |
| 17 | Ground Clearance | (Bottom of mast) | mm | 160 | 210 | 210 | |
| 18 | Wheelbase | mm | 2450 | 2850 | 2850 | ||
| 19 | Fork Spread | Min./Max. | mm | 300/2000 | 515/2055 | 515/2055 | |
| Performance | 20 | Speed | Travel (Laden) | km/h | 15 | 15 | 15 |
| 21 | Lifting (Laden) | mm/s | 275 | 260 | 220 | ||
| 22 | Max.Gradeability | Laden | % | 15 | 10 | 10 | |
| 23 | Service Weight（include battery ） | kg | 12780 | 16710 | 16910 | ||
| 24 | Tire | Front | 9.00-16 | 9.00-20 | 9.00-20 | ||
| 25 | Rear | 8.25-15 | 8.25-20 | 8.25-20 | |||
| Driven | 26 | Motor | Driven Motor | kw | 2*14（BEST MOTOR） | 2*20(SCHABMULLER) | 2*20(SCHABMULLER) |
| 27 | Lift Motor | kw | 2*25(SCHABMULLER) | 2*28(SCHABMULLER) | 2*28(SCHABMULLER) | ||
| 28 | Battery | Standard | V/Ah | 80/1150 | 96/1250 | 96/1250 | |
| 29 | Controller | Manufacturer | CURTIS | CURTIS | CURTIS | ||
| 30 | Operating Pressure for Attachment | Mpa | 17.5 | 17.5 | 17.5 | ||
