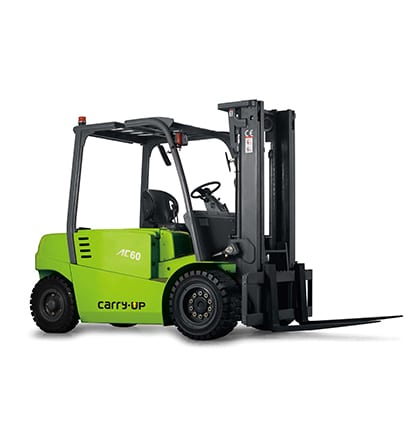

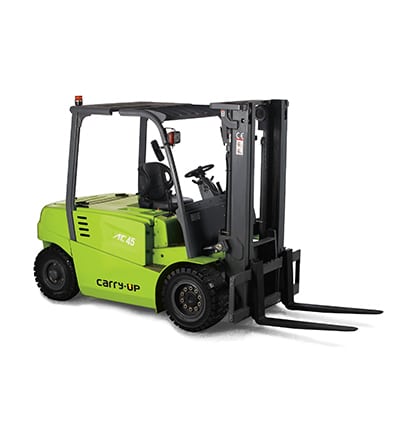

FB45/FB50/FB60 Four Wheels Electric Forklift
Four Wheels Electric Forklift
FB45,FB50,FB60
Capacity: 4.5tons, 5tons,6tons
Max.lift height :3000-6000mm
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
| FB45/FB50/FB60 Four Wheels Forklift Specification | |||||||
| Specification | 1 | Model | FB45 | FB50 | FB60 | ||
| 2 | Power type | electric | electric | electric | |||
| 3 | Rated Capacity | kg | 4500 | 5000 | 6000 | ||
| 4 | Load Centre | mm | 500 | 500 | 500 | ||
| 5 | Lifting Height | mm | 3000 | 3000 | 3000 | ||
| 6 | Fork Size | L×W×T | mm | 1070×150×50 | 1070×150×50 | 1070×150×50 | |
| 7 | Tilting Angle | F/R（α°/β°） | Deg | 6/9 | 6/9 | 6/9 | |
| Dimensions | 8 | Overall Dimension | Length to fork face（Without fork) | mm | 3030 | 3030 | 3030 |
| 9 | Overall Width | mm | 1600 | 1600 | 1600 | ||
| 10 | Mast Lowered Height | mm | 2330 | 2330 | 2330 | ||
| 11 | Mast Extended Height (with backrest) | mm | 4255 | 4255 | 4255 | ||
| 12 | Overhead Guard Height | mm | 2255 | 2255 | 2255 | ||
| 13 | Turning Radius | outside | mm | 2755 | 2755 | 2755 | |
| 14 | Turning Radius | Min. insecting aisle | mm | 2955 | 2955 | 2955 | |
| 15 | Front Overhang | mm | 555 | 555 | 555 | ||
| 16 | Tread | (Front/Rear) | mm | 1280/1190 | 1280/1190 | 1280/1190 | |
| 17 | Ground Clearance | (Bottom of mast) | mm | 160 | 160 | 160 | |
| 18 | Wheelbase | mm | 2000 | 2000 | 2000 | ||
| 19 | Fork Spread | Min./Max. | mm | 300/1380 | 300/1380 | 300/1380 | |
| Performance | 20 | Speed | Travel (Laden) | km/h | 14 | 14 | 14 |
| 21 | Lifting (Laden) | mm/s | 250 | 220 | 220 | ||
| 22 | Max.Gradeability | Laden | % | 15 | 15 | 15 | |
| 23 | Service Weight（include battery ） | kg | 7500 | 7800 | 8200 | ||
| 24 | Tire | Front | 28*12.5-15-24PR | 28*12.5-15-24PR | 28*12.5-15-24PR | ||
| 25 | Rear | 7.00-12-14PR | 7.00-12-14PR | 7.00-12-14PR | |||
| Driven | 26 | Motor | Driven Motor | kw | 9.1*2 | 9.1*2 | 9.1*2 |
| 27 | Lift Motor | kw | 25.4 | 25.4 | 25.4 | ||
| 28 | Battery | Standard | V/Ah | 80/600 | 80/700 | 80/800 | |
| 29 | Controller | Manufacturer | CURTIS | CURTIS | CURTIS | ||
| 30 | Operating Pressure for Attachment | Mpa | 17.5 | 17.5 | 17.5 | ||
