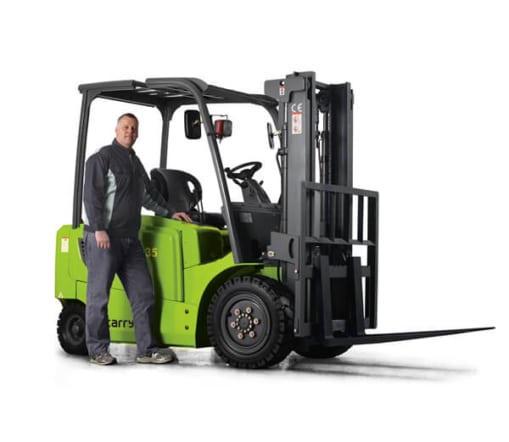

FB30 & FB35 Four Wheels Electric Forklift
Four Wheels Electric Forklift
FB30,FB35
Capacity: 3tons,3.5tons
Max.lift height :3000-6000mm
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- 3D View
- Benefits & Features
| CARRY.UP FB30~FB35 Four Wheels Electric Forklift Specification | ||||||
| Specification | 1 | Model | FB30 | FB35 | ||
| 2 | Power type | electric | electric | |||
| 3 | Rated Capacity | kg | 3000 | 3500 | ||
| 4 | Load Centre | mm | 500 | 500 | ||
| 5 | Lifting Height | mm | 3000 | 3000 | ||
| 6 | Fork Size | L×W×T | mm | 1070×125×45 | 1070×125×50 | |
| 7 | Tilting Angle | F/R（α°/β°） | Deg | 6/12 | 6/12 | |
| Dimensions | 8 | Overall Dimension | Length (to fork face) | mm | 2560 | 2560 |
| 9 | Overall Width | mm | 1230 | 1230 | ||
| 10 | Mast Lowered Height | mm | 2120 | 2120 | ||
| 11 | Mast Extended Height (with backrest) | mm | 4160 | 4160 | ||
| 12 | Overhead Guard Height | mm | 2250 | 2250 | ||
| 13 | Turning Radius | outside | mm | 2315 | 2315 | |
| 14 | Turning Radius | Min. insecting aisle | mm | 2425 | 2425 | |
| 15 | Front Overhang | mm | 480 | 480 | ||
| 16 | Tread | (Front/Rear) | mm | 1000/980 | 1000/980 | |
| 17 | Ground Clearance | Min. | mm | 120 | 120 | |
| 18 | Wheelbase | mm | 1710 | 1710 | ||
| 19 | Fork Spread | Min./Max. | mm | 250/1100 | 250/1100 | |
| Performance | 20 | Speed | Travel (Laden) | km/h | 15 | 15 |
| 21 | Lifting (Laden) | mm/s | 300 | 280 | ||
| 22 | Max.Gradeability | Laden | % | 15 | 15 | |
| 23 | Service Weight（include battery ） | kg | 5100 | 5350 | ||
| 24 | Tire | Front | 28*9-15-12PR | 28*9-15-12PR | ||
| 25 | Rear | 18*7-8-14PR | 18*7-8-14PR | |||
| Driven | 26 | Motor | Driven Motor | kw | 15 | 15 |
| 27 | Lift Motor | kw | 12 | 12 | ||
| 28 | Battery | Standard | V/Ah | 80/500 | 80/550 | |
| 29 | Controller | Manufacturer | CURTIS | CURTIS | ||
| 30 | Operating Pressure for Attachment | Mpa | 17.5 | 17.5 | ||
