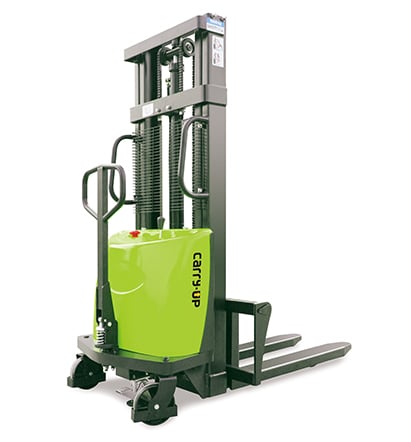

CDD10B/CDD15B/CDD20B Semi-electric Stacker
SEMI-ELECTRIC STACKER
CDD10B/CDD15B/CDD20B

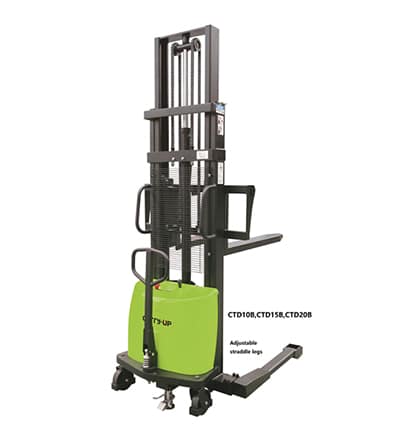

CTD10B/CTD15B/CTD20B
Capacity: 1tons，1.5tons,2tons
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- 3D VIEW
- Chart
| CDD10B,CDD15B,CDD20B SEMI-ELECTRIC STACKER | |||||||||
| Specification | 1 | Model | CDD10B/CDD15B/CDD20B | ||||||
| 2 | Power Type | Semi-electric | |||||||
| 3 | Load Capacity | kg | 1000/1500/2000 | ||||||
| 4 | Load Center | c(mm) | 500 | ||||||
| 5 | Wheel Type | Nylon/PU | |||||||
| 6 | Wheel Size,front | mm | ￠180×50 | ||||||
| 7 | Wheel Size,rear | mm | ￠80×70 | ||||||
| 8 | Wheel Numbers(front/rear) | 2/2 | |||||||
| Dimensions | 9 | Lowered Mast Height | h1(mm) | 2085/1585/1835/2085/2235/2335/2585 | |||||
| 10 | Max.lifting Height | h3(mm) | 1600/2000/2500/3000/3300/3500/4000 | ||||||
| 11 | Extended Mast Height | h4(mm) | 2083/2550/3050/3550/3850/4050/4550 | ||||||
| 12 | Lowered Fork Height | h13(mm) | 90 | ||||||
| 13 | Overall Length | l1(mm) | 1735 | ||||||
| 14 | Overall Width | b1(mm) | 800 | ||||||
| 15 | Ground Clearance | m2(mm) | 26 | ||||||
| 16 | Turning Radius | mm | 1415 | ||||||
| Performance | 17 | Speed | Lifting (Laden/unladen) | m/s | 0.135/0.15 | ||||
| 18 | Falling(Laden/unladen) | m/s | hand control | ||||||
| 19 | Service Weight（include battery ） | kg | 380/450/480 | ||||||
| Driven | 20 | Service Brake | / | / | |||||
| 21 | Motor | Driven Motor | kw | / | |||||
| 22 | Lift Motor | kw | / | ||||||
| 23 | Steering Motor | kw | / | ||||||
| 24 | Battery | Voltage/noinal Capacity | V/Ah | 12/110 12/110 12/100 | |||||
| 25 | Size(L×W×H) | mm | 365×270×175 | ||||||
