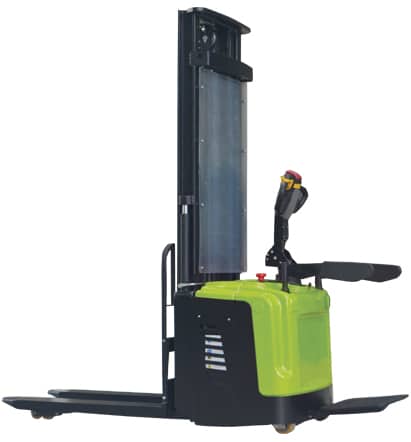

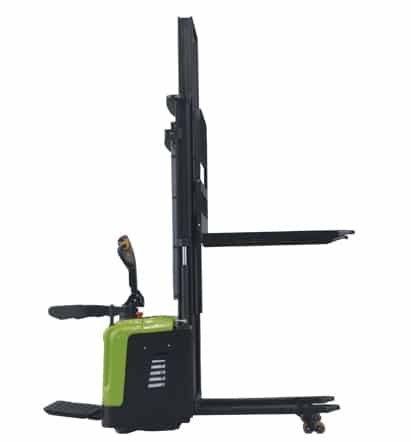

CDD15RD/CDDK20RD Double Pallet Electric Stacker
double pallet electric satcker
CDD15RD,CDDK20RD
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- Chart
| DOUBLE PALLET ELECTRIC STACKER INITIAL LIFTING SPECIFICATION | |||||||||
| Specification | 1 | Model | CDD15RD | CDD20RD | |||||
| 2 | Operating type | Stand on | Stand on | ||||||
| 3 | Power type | electric | electric | ||||||
| 4 | Capacity | kg | 1500 | 2000 | |||||
| 5 | Road center | mm | 600 | 600 | |||||
| 6 | Wheel quantity(Driving/Bearing) | 1*/2 | 1*/2 | ||||||
| 7 | Front wheel size，number | mm | φ80*70 ，4 | φ80*70 ，4 | |||||
| 8 | Rear wheel size，number | mm | φ250*75，1 | φ250*75 ，1 | |||||
| 9 | Balance wheel size，number | mm | φ150*58 ，2 | φ150*58 ，2 | |||||
| Dimensions | 10 | Lowered mast height | mm | 1849~2349 | |||||
| 11 | Height of mast,extended | mm | 3043/3343/3443/3643/4043 | ||||||
| 12 | Max.lift height | mm | 2600/2900/3000/3200/3600 | ||||||
| 13 | Overall length | mm | 2000 | ||||||
| 14 | Overall width | mm | 808 | ||||||
| 15 | Fork dimensions | s/e/l(mm) | 60/180/1150 | ||||||
| 16 | Turning radius | mm | 1710 | ||||||
| 17 | Aisle width with pallet 1000*1200 across forks | Ast(mm) | 2530 | ||||||
| 18 | Aisle width with pallet 1000*1200 across forks | Ast(mm) | 2430 | ||||||
| 19 | Min.groundclearance | mm | 28 | 28 | |||||
| 20 | Width of forks | mm | 685 | 685 | |||||
| Drive | 21 | Service Weight（include battery ） | kg | 1040~1230 | |||||
| 22 | Drive motor | kw | 1.5/2.5 | 1.5/2.5 | |||||
| 23 | Lift motor | kw | 2.2 | 2.2 | |||||
| 24 | Steering motor | kw | 0.2 | 0.2 | |||||
| 25 | Steering type | EPS(Electric Power steering ） | |||||||
| 26 | Drive type | AC | |||||||
| 27 | Travel speed,laden/unladen | km/h | 5.2/5.5 | 5.2/5.5 | |||||
| 28 | Lifting speed,laden/unladen | mm/s | 100/130 | 100/130 | |||||
| 29 | Lowering speed,laden/unladen | mm/s | 180/140 | 180/140 | |||||
| 30 | Max.gradeability,laden/unladen | % | 6/8 | 6/8 | |||||
| 31 | Battery | Voltage | V | 24 | 24 | ||||
| 32 | Capacity | Ah | 210 | 210 | |||||
