CBD15J Electric Pallet Truck

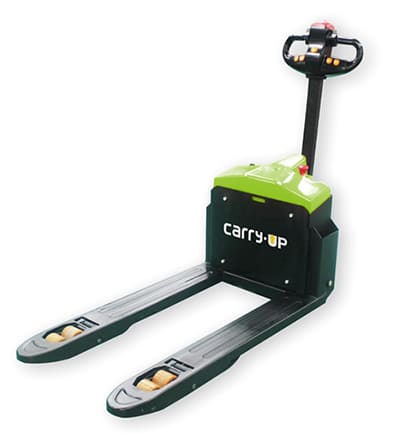

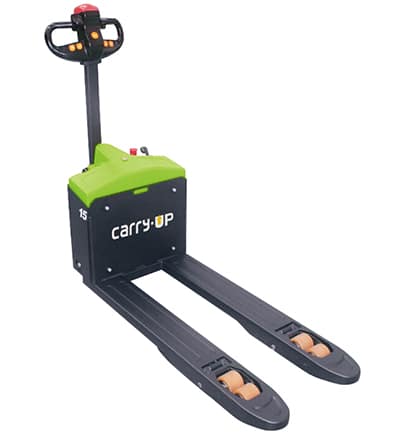

1.5T WALKIE ELECTRIC PALLET TRUCK
CBD15J
Capacity: 1500KGS
Driving motor: DC 0.65KW
Lifting motor: DC 0.8KW
Battery: 85Ah Maintenance Free
Charger: Build-in
- 24-Hour Online Support
- Global Service Network
- Technical Solutions
- Specifications
- Description
| SPECIFICATION | |||||||||
| Specification | 1 | 1.5T WALKIE ELECTRIC PALLET TRUCK CBD15J | |||||||
| 2 | Model | CBD15J | |||||||
| 3 | Operating type | Walkie | |||||||
| 4 | Power type | electric | |||||||
| 5 | Rated Capacity | kg | 1500 | ||||||
| 6 | Load Centre | mm | 600 | ||||||
| 7 | Wheels type | PU | |||||||
| 8 | Wheel base | mm | 1280/1235 | ||||||
| 9 | Wheel quantity-Driving/Balance/Bearing | 2/4/2001 | |||||||
| 10 | Driving wheel size | mm | ￠210×70 | ||||||
| 11 | Balance wheel size | mm | ￠84×70（Double wheel） | ||||||
| 12 | Bearing wheel size | mm | ￠84×101（Single wheel） | ||||||
| Dimensions | 13 | Min.fork lowered height | mm | 85(75 as option) | |||||
| 14 | Max.fork lifting height | mm | 205 | ||||||
| 15 | Max.lifting height | mm | 120 | ||||||
| 16 | Outside width between forks | mm | 550/685 | ||||||
| 17 | Intside width between forks | mm | 390 | ||||||
| 18 | Fork length | mm | 1150/1200 | ||||||
| 19 | Fork width | mm | 160 | ||||||
| 20 | Fork thickness | mm | 73 | ||||||
| 21 | Overall length | mm | 1648/1698 | ||||||
| 22 | Overall width | mm | 570/685 | ||||||
| 23 | Overall height(With handle) | mm | 1213 | ||||||
| 24 | Overall height(Without handle) | mm | 634 | ||||||
| 25 | Min.Turning radius | mm | 1414/1464 | ||||||
| 26 | Min.Aisle width for pallets 800×1200 | mm | 1728/1778 | ||||||
| 27 | Min.Aisle width for pallets 1000×120 | mm | 1764/1814 | ||||||
| Performance | 28 | Speed | Travel (Laden/unladen) | km/h | 3.5/4 | ||||
| 29 | Lifting (Laden/unladen) | mm/s | 30/35 | ||||||
| 30 | Lowering (Laden/unladen) | mm/s | 35/30 | ||||||
| 31 | Max.Gradeability | (Laden/unladen) | % | 5/7 | |||||
| 32 | Service Weight（include battery ） | kg | 210 | ||||||
| Driven | 33 | Motor | Driven Motor | kw | DC 0.65 | ||||
| 34 | Lift Motor | kw | DC 0.8 | ||||||
| 35 | Steering motor | kw | / | ||||||
| 36 | Battery | Standard | V/Ah | 24/75(Standard)/85(Options) | |||||
| 37 | Weight | kg | 50 | ||||||
| 38 | Controller | Manufacturer | CARRY UP(Standard)/CURTIS 1212F(Options) | ||||||
| 39 | Brake | Electromagnetic / Regenerative | |||||||

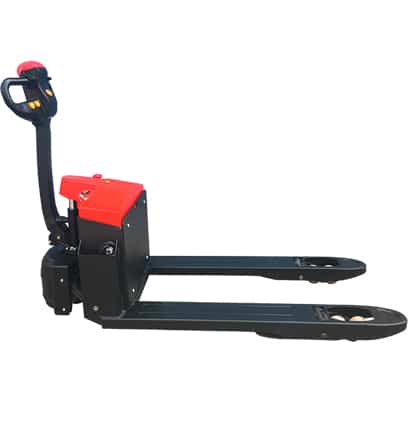

SCIENTIFIC COMPACTNESS
The dimension of CBD15J is quite close to hand pallet truck, overall width could be 560/685mm for different fork size.
Featuring the small turning radius, it is of great help in narrow aisles.
With optional Up-Right Driving Function, it ensures more safety control to prevent any risks.

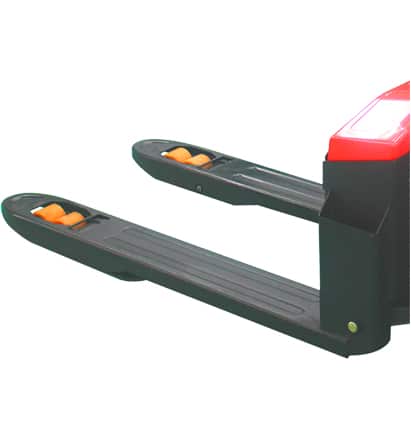

FORK BUILT TO PERFORM
Grooved fork enhances the strength of the fork.
It features to enter empty loading pallet smoothly with our special fork design.

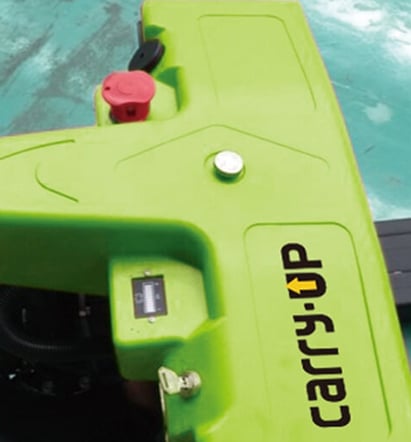

EXCELLENT BATTERY & CHARGER

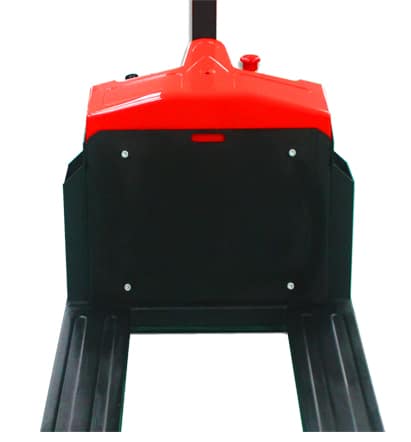

Battery is behind a protection cover, which could help replace the battery effortlessly by losing 4 screws.
With build-in charger, you could charge the battery anytime and anywhere.
