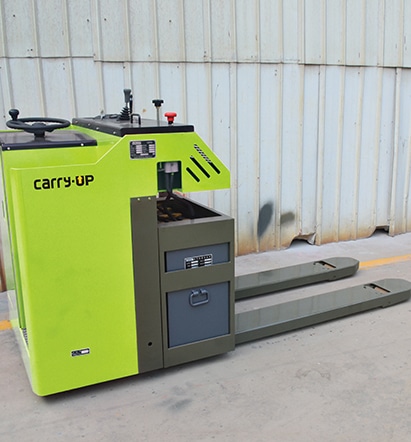

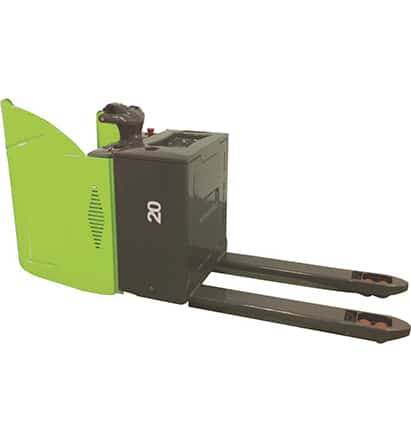

CBD20L and CBD60L Electric Pallet Truck

ELECTRIC PALLET TRUCK

CBD20L and CBD60L

Capacity: 2tons，6tons

CBD20L AND CBD60L ELECTRIC PALLET TRUCK
General	1	Model				CBD20L(EPS)	CBD60L
	2	Power Type				Electric	Electric
	3	Operation Type				Stand-on	Stand-on
	4	Rated Capacity			kg	6000	6000
	5	Load Centre			c(mm)	600	600
Characteristic&Dimension	6	Tyre		Front /rear type		PU/PU	PU/PU
	7			Front Wheel Size	mm	￠84×80（Double wheel）	φ85×145
	8			Driving Wheel Size	mm	￠248×75	φ343×108
	9			Balance Wheel Size	mm	￠115×55	φ125×50
	10			Front/rear Number (X=drive)		4/1X+2	4/1X+2
	11	Overall Dimension		Overall Height	h1(mm)	1170	1375
	12			Lifting Height	h2(mm)	120	115
	13			Min. Height	h3(mm)	90	100
	14			Wheelbase	y(mm)	1569	1845
	15			Overall Length	l1(mm)	2465	2215
	16			Overall Width	b1(mm)	790	1012
	17			Fork Dimensions	l/e/s(mm)	1150/1200×170×75	1200×235×86
	19	Turning radius			Wa(mm)	2278	2100
	20	Aisle Width for Pallet 1000*1200			Ast(mm)	2589	2828
	21	Aisle Width for Pallet 800*1200			Ast(mm)	2568	2735
Performance	22	Speed		Travel (laden/unladen)	km/h	10/11	7/8
	23			Lifting (laden/unladen)	mm/s	20/25	41/54
	24			Lowering (laden/unladen)	mm/s	40/30	54/45
	25	Steering Type				EPS	Hydraulic
	26	Parking Brake Type				Electromagnetic / Regenerative	Electromagnetic
	27	Max.Gradeability(Laden/unladen)			%	10/15	6/8
	28	Service Weight(include battery)			kg	875	1580
Power&Transmission	29	Motor	Drive Motor Type			AC	DC
	30		Drive Motor		kw	3	4
	31		Lift Motor Type			DC	DC
	32		Lift Motor		kw	1.2	6.3
	33	Battery	Voltage/Capacity		V/Ah	24/280	48/300
